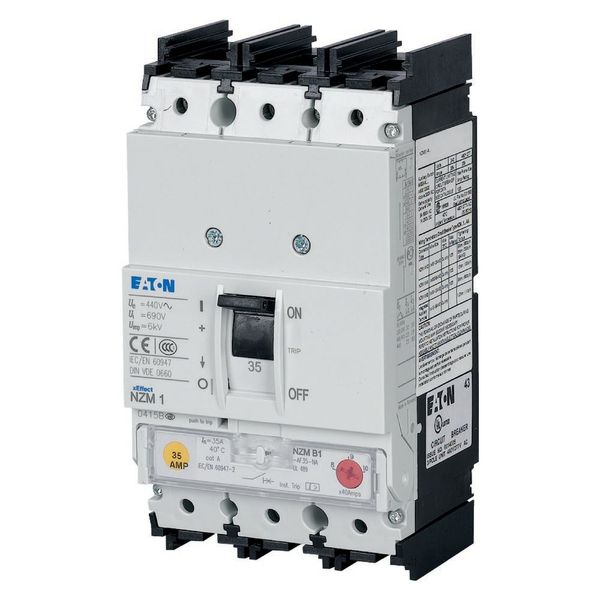

NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 1
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 2
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 3
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 4
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 5
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 6
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 7
NZMB1-AF100-NA Circuit-breaker, 3p, 100A image 8
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 1
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 2
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 3
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 4
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 5
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 6
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 7
NZMB1-AF100-NA Circuit-breaker, 3p, 100A thumbnail 8
EATON

NZMB1-AF100-NA Circuit-breaker, 3p, 100A

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
241,27 €
This price is valid until 31.12.25
EAN: 4015082722524
MPN: 272252
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name NZMB1-AF100-NA Circuit-breaker, 3p, 100A
Brand EATON
Categories Power Circuit Breakers
Country of origin RO
Harmonized System Code 8536 2090 00
Rated permanent current Iu 100 A
Number of poles 3
Rated voltage 440 V
Degree of protection (IP) IP20
With switched-off indicator No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 25 kA
Integrated earth fault protection No
Device construction Built-in device fixed built-in technique

Packing details

Packing level 1 4015082722524

Other Technical data

Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
With integrated under voltage release No
Overload release current setting 100 A
Number of auxiliary contacts as change-over contact 0
Position of connection for main current circuit Front side
Motor drive integrated No
Type of electrical connection of main circuit Frame clamp
Type of control element Rocker lever
Adjustment range short-term delayed short-circuit release 0 A
Adjustment range undelayed short-circuit release 600-1000 A
Suitable for DIN rail (top hat rail) mounting No
Motor drive optional No
DIN rail (top hat rail) mounting optional Yes
Complete device with protection unit Yes

Description

Circuit-breaker NZM1, 3 pole, Switching capacity SCCR 480Y/277 V 60 Hz( Icu ): 25 kA, Rated current = rated uninterrupted current (In = Iu ): 100 A, Installation type: Fixed, Box terminal, Standard/Approval: UL/CSA, IEC, Protective function: System and cable protection
