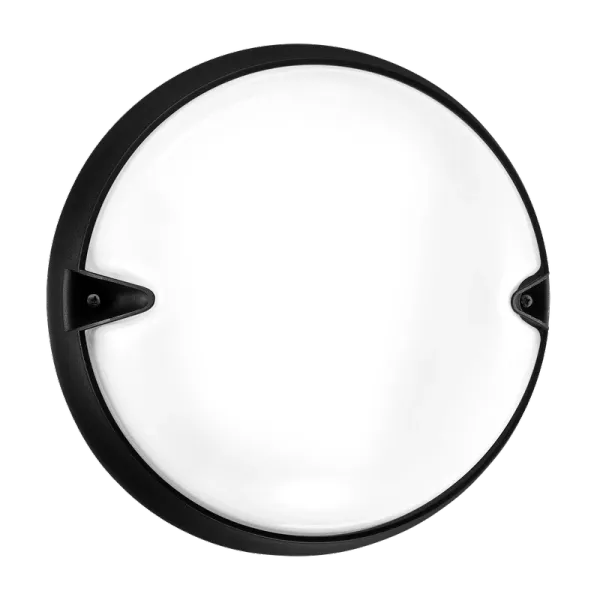

CHIP TONDO 30 LED 840 BLACK 16.5W
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
105,83 €
EAN: 8018367672060
MPN: 3100176
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CHIP TONDO 30 LED 840 BLACK 16.5W |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | IT |
| Harmonized System Code | 9405 1140 00 |
| Colour housing | Black |
| Colour rendering index CRI | 80-89 |

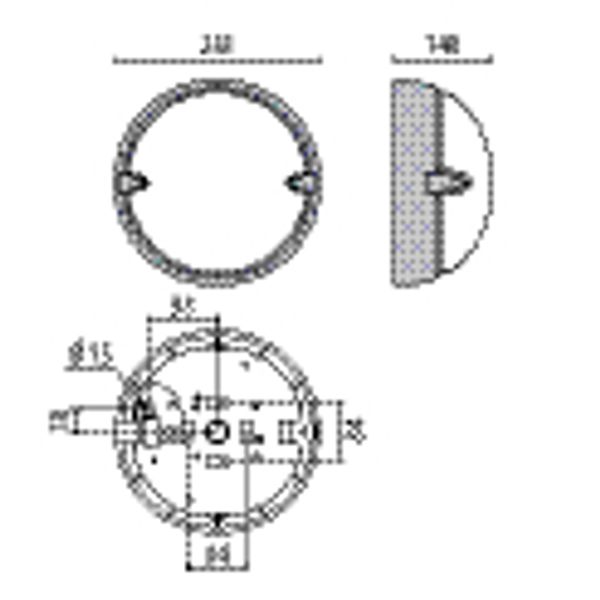

| Height/depth | 140 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 16.5 W |
Packing details
| Packing level 1 | 8018367672060, 8018367672060 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 14 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -20 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 96.6 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95.4 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 93.5 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
Downloads
Description
Serie wand-, mast en plafondarmatuur in twee afmetingen voor binnen of buiten, bestaande uit: Basis, ring of scherm van technopolymeer. Afscherming van geperst glas, van binnen gesatineerd. Reflector van aluminium voor de versies E27. Reflector van technopolymeer voor fluorescentielampen. Siliconenpakking. Kabelinvoer ook met buis aan zijkant D= 20 mm. Schroeven van roestvrijstaal (antidiefstalschroeven op aanvraag leverbaar). PC 960° versies op aanvraag. Ook verkrijgbaar in ovale versie.
