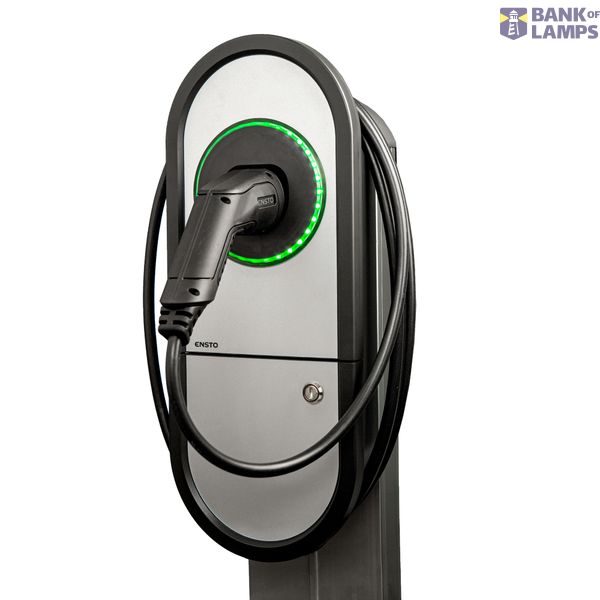

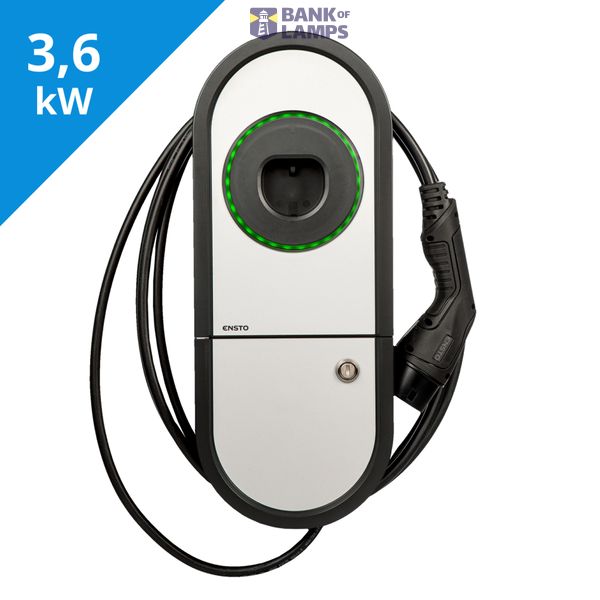

Charging station EVH 1x16A T2C RCBO
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Charging station EVH 1x16A T2C RCBO |
| Brand | Ensto |
| ETIM | EC002883 |
| Number of earth leakage circuit breakers type A | 1 |
| Max. power per charging point | 3.6 kW |
| Installation side connection model | Single phase |
Packing details
| Packing level 1 | 6438100370787, 6438100370787 |
| Packing level 2 | 6438100370787 |
Other Technical data
| Mounting method | Wall mounting |
| Width | 209 mm |
| Height | 513 mm |
| Depth | 134 mm |
| Housing material | Plastic |
| Nominal connection power | 3.6 kW |
| Impact strength | IK10 |
| Degree of protection (IP) | IP54 |
| With communication interface | No |
| Function access control | No |
| Number of charging units | 1 |
| Number of vehicle connectors Type 2 | 1 |
| Number of socket outlets Type 2 | 0 |
| With load management | No |
| With energy meter | No |
| With circuit breaker | Yes |
Videos
Description
Single family house charger, Ensto One Home is available with fixed 5m Type 2 charging cable and 3,6kW charging power. Charging current can be easily adjusted between 6A-16A via mobile app. This Ensto One Home model has built-in DC leakage detection (6mA) and built-in residual current detection (RCBO, 30mA).
