Charging station 1x16A Mode3 Type2
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Charging station 1x16A Mode3 Type2 |
| Brand | Ensto |
| ETIM | EC002883 |
| Number of earth leakage circuit breakers type A | 0 |
| Number of earth leakage circuit breakers type B | 0 |
| Max. power per charging point | 3.7 kW |
| Number of vehicle connectors Type 1 | 0 |
| Number of vehicle connectors CHAdeMO | 0 |
| Installation side connection model | Single phase |
Packing details
| Packing level 1 | 6418677676338, 6418677676338 |
Other Technical data
| Mounting method | Wall mounting |
| Width | 220 mm |
| Height | 432 mm |
| Depth | 168 mm |
| Housing material | Aluminium |
| Nominal connection power | 3.7 kW |
| Impact strength | IK10 |
| Degree of protection (IP) | IP54 |
| Number of CEE socket outlets | 0 |
| With communication interface | No |
| Function access control | No |
| Number of charging units | 1 |
| With house connection box | No |
| Number of vehicle connectors Type 1 CCS | 0 |
| Number of vehicle connectors Type 2 | 1 |
| Number of vehicle connectors Type 2 CCS | 0 |
| Number of socket outlets Type 2 | 0 |
| Number of vehicle connectors GB AC | 0 |
| Number of vehicle connectors GB DC | 0 |
| Number of socket outlets GB | 0 |
| Number of socket outlets Type 3 | 0 |
| Number of household socket outlets | 0 |
| With load management | No |
| With energy meter | No |
| With circuit breaker | No |
Description

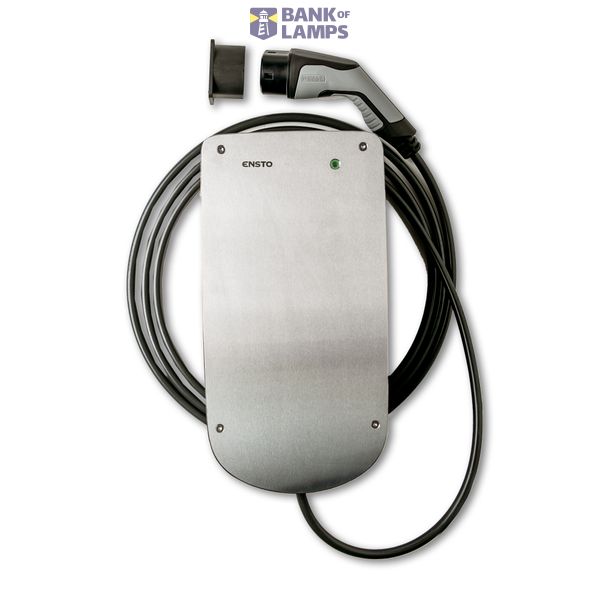

Compact wall mounted charging point with fixed charging cable, Mode 3, Type 2. Stylish and durable design particularly suitable for simple home charging, when built-in over-current and residual current protection or link to backend systems are not needed. Tricolor indication LED light. A separate charging plug holder can be installed to the wall.
