Charging pole LS4 32A 3+3PH Z 22kW 4G CC612
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Charging pole LS4 32A 3+3PH Z 22kW 4G CC612 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC002883 |
| Number of earth leakage circuit breakers type A | 2 |
| Max. power per charging point | 22 kW |
| Installation side connection model | 3-phase |
Packing details
| Packing level 1 | 9003399501425 |
Other Technical data
| Mounting method | Floor fastening |
| Width | 375 mm |
| Height | 1400 mm |
| Depth | 208 mm |
| Housing material | Aluminium |
| Nominal connection power | 44 kW |
| Impact strength | IK10 |
| Degree of protection (IP) | IP44 |
| With communication interface | Yes |
| Function access control | Yes |
| Number of charging units | 2 |
| Number of socket outlets Type 2 | 2 |
| With energy meter | Yes |
| With circuit breaker | Yes |
Downloads
Description

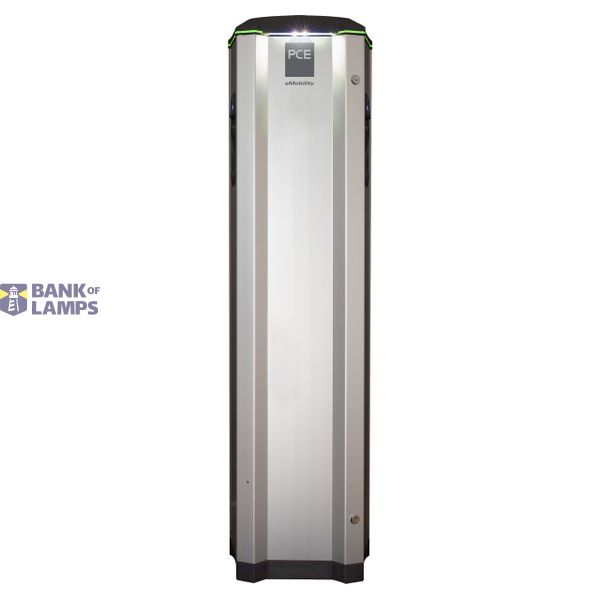

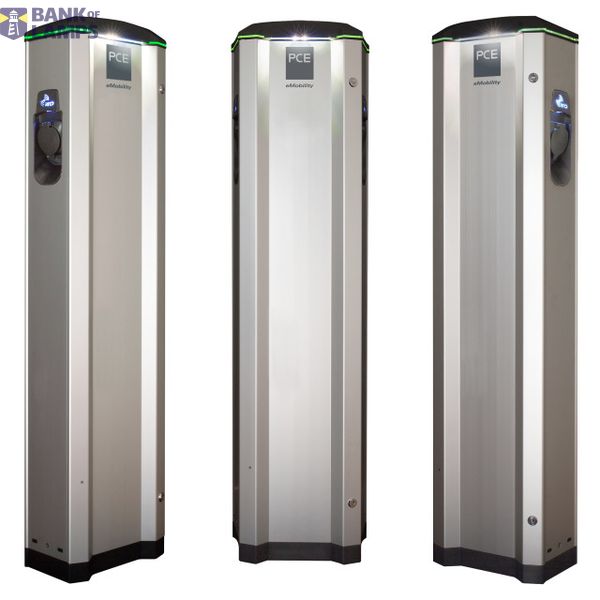

LS4 charging pole for electric vehicles
Connection: 400V AC, 50Hz, 3-phase
Number of charging points: 2
Charging socket type 2 with locking device
Max. Power per charging point: 22kW
Charging current (max): 2 x 32A
Rated connected load: 44kW
Main switch over all outlets
Protection:
2 x RCCB type A + integr. DC fault current detection (6mA)
2 x MCB C 32A 4 poles
Authorisation: RFID
Controller: CC612 charge controller
Communication interface: 4G module
Backend system: no pre-configuration
WxDxH: 375x1400x208mm
material of housing: aluminium, anodised
mounting method: floor mounting
degree of protection: IP44
impact strength: IK10
Temperature control/heating: Yes
ambient temperature: -25°C to +40°C
integrated digital modbus energy meter, certified acc. to MID directive

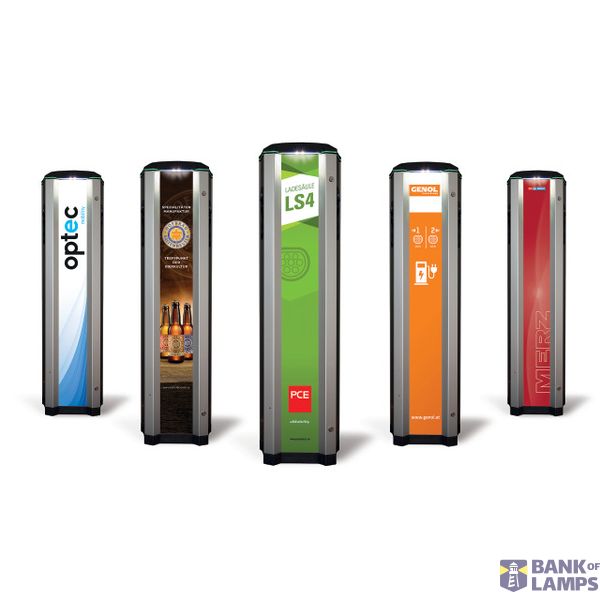

Branding: PCE standard, frontside
