Charging pole eMC3, 2 x 22kW, calibration law compliant, 2 x Type 2 socket, controller, jbox, reev Pro
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Charging pole eMC3, 2 x 22kW, calibration law compliant, 2 x Type 2 socket, controller, jbox, reev Pro |
| Brand | ABL |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1091 00 |
| ETIM | EC002883 |
| Number of earth leakage circuit breakers type A | 0 |
| Number of earth leakage circuit breakers type B | 2 |
| Max. power per charging point | 22 kW |
| Number of vehicle connectors Type 1 | 0 |
| Number of vehicle connectors CHAdeMO | 0 |
| Installation side connection model | 3-phase |
Packing details
| Packing level 1 | 4011721181325 |
Other Technical data
| Mounting method | Floor fastening |
| Width | 590 mm |
| Height | 1661 mm |
| Depth | 220 mm |
| Housing material | Steel |
| Nominal connection power | 44 kW |
| Impact strength | IK10 |
| Degree of protection (IP) | IP44 |
| Number of CEE socket outlets | 0 |
| With communication interface | Yes |
| Function access control | Yes |
| Number of charging units | 2 |
| With house connection box | Yes |
| Number of vehicle connectors Type 1 CCS | 0 |
| Number of vehicle connectors Type 2 | 0 |
| Number of vehicle connectors Type 2 CCS | 0 |
| Number of socket outlets Type 2 | 2 |
| Number of vehicle connectors GB AC | 0 |
| Number of vehicle connectors GB DC | 0 |
| Number of socket outlets GB | 0 |
| Number of socket outlets Type 3 | 0 |
| Number of household socket outlets | 0 |
| With load management | Yes |
| With energy meter | Yes |
| With circuit breaker | Yes |
Description

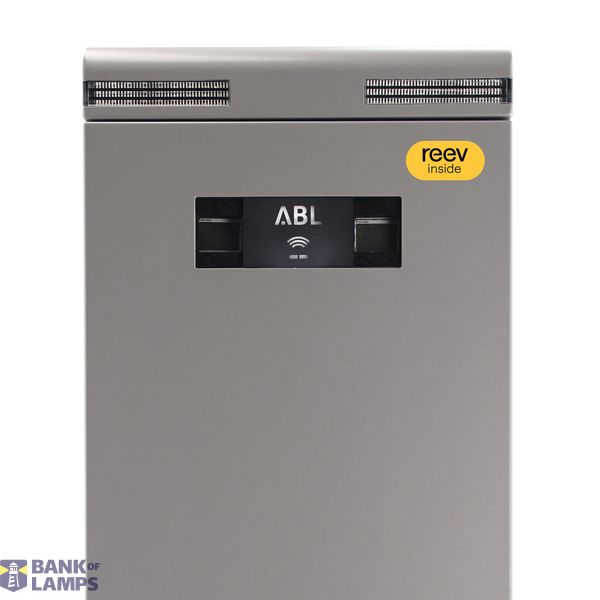

Calibration law compliant, the eMC3 charging pole has two integrated Type 2 charging sockets. Thanks to its ability to charge two vehicles simultaneously, and its intelligent reev Dashboard, it is the ideal solution for companies and apartment buildings. The 24-month reev Dashboard Pro licence enables future-proof operation, regular software updates, as well as easy monitoring and management for automated monthly invoicing for employees, customers and visitors. The Dashboard can also be upgraded at any time. The double powder-coated metal housing is splash and dust protected. Rain runs off the curved cover towards the back. The plinth is designed so that the eMC3 charging pole is easy to install on any surface and appears to float. The charging pole is equipped with two energy meters, an upstream meter fuse, a domestic power distribution box, overvoltage protection and two Type B residual current circuit breakers (RCCB). The eMC3 charging pole with reev Dashboard Pro is 'Made in Germany' and offers the highest safety standards available.
