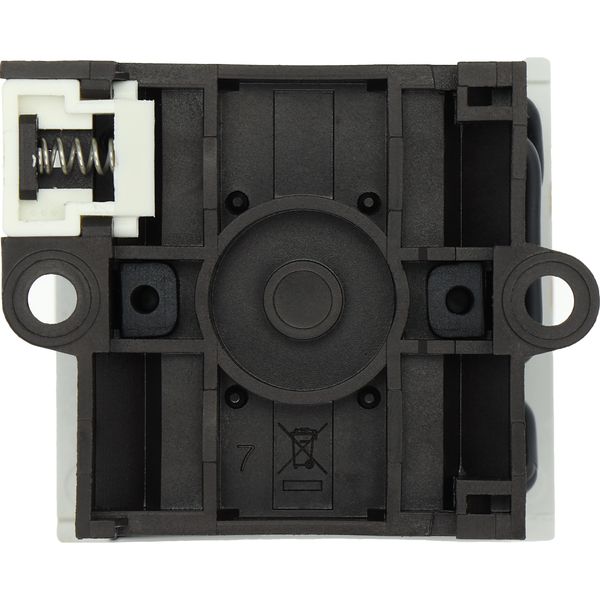

T0-6-8370/IVS Changeoverswitches, T0, 20 A, service distribution board mounting, 6 contact unit(s), Contacts: 12, 90 °, maintained, Without 0 (Off) position, 1-2, D
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
23,93 €
EAN: 4015080673248
MPN: 067324
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | T0-6-8370/IVS Changeoverswitches, T0, 20 A, service distribution board mounting, 6 contact unit(s), Contacts: 12, 90 °, maintained, Without 0 (Off) position, 1-2, D |
| Brand | EATON |
| Categories |
Off-load Switches
|
| Country of origin | GB |
| Harmonized System Code | 8536 5080 00 |
| Model | Reverser |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated permanent current Iu | 20 A |
| Number of poles | 6 |
| Rated operation current Ie at AC-3, 400 V | 11.5 A |
| With zero (off) position | No |
| Degree of protection (IP), front side | IP30 |
| Type of control element | Short thumb-grip |
Packing details
| Packing level 1 | 4015080673248 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Housing material | Plastic |
| With retraction in 0-position | No |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Complete device in housing | No |
| Degree of protection (NEMA), front side | 2 |
Description
Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
