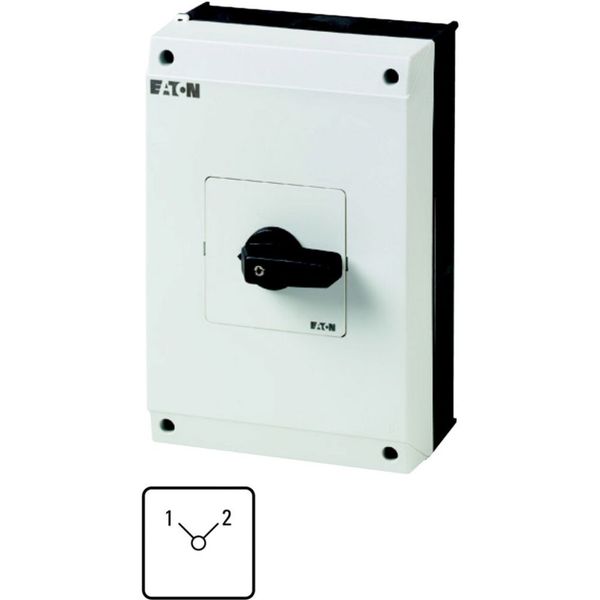

T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 image 1
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 image 2
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 image 3
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 image 4
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 thumbnail 1
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 thumbnail 2
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 thumbnail 3
T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50 thumbnail 4
EATON

T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50

Order only
Price (excl. VAT):
118,36 €
This price is valid until 31.12.25
EAN: 4015082229986
MPN: 222998
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name T5B-3-50/I4 Multi-speed switches, T5B, 63 A, surface mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 50
Brand EATON
Categories Off-load Switches
Country of origin GB
Harmonized System Code 8536 5080 00
Model Pole switch
Rated operation power at AC-3, 400 V 22 kW
Rated permanent current Iu 63 A
Number of poles 3
Rated operation current Ie at AC-3, 400 V 41 A
With zero (off) position No
Degree of protection (IP), front side IP65
Type of control element Short thumb-grip

Packing details

Packing level 1 4015082229986

Other Technical data

Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Housing material Plastic
With retraction in 0-position No
Number of auxiliary contacts as change-over contact 0
Type of electrical connection of main circuit Screw connection
Suitable for floor mounting Yes
Suitable for front mounting No
Suitable for distribution board installation No
Suitable for intermediate mounting No
Complete device in housing Yes
Degree of protection (NEMA), front side 12

Description

Multi-speed switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, switching function: 2 speeds, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
