CENTRYXX W IP65plus, 6,6 W, 440 lm, 765, white, on/off Wall luminaires
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
740,52 €
EAN: 4051859868958
MPN: 672546.002.04
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CENTRYXX W IP65plus, 6,6 W, 440 lm, 765, white, on/off Wall luminaires |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 190 mm |
| Length | 117 mm |
| Height/depth | 190 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 6500 K |
| Max. system power | 6.6 W |
| Rated luminous flux according to IEC 62722-2-1 | 440 lm |
Packing details
| Packing level 1 | 4051859868958, 4051859868958 |
Other Technical data
| Mounting method | Wall surface mounted |
| Protection class | I |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Number of poles | 6 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Glass transparent |
| Battery quality | NiMH |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Nominal current | 28-30 |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Ending |
| Luminous flux in standby mode | 370 lm |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -5-30 °C |
| Light distributor | None |
| Nominal operation time | 3 h |
| Exchangeable control gear | Yes |
| Power factor | 0.57 |
Downloads
Description

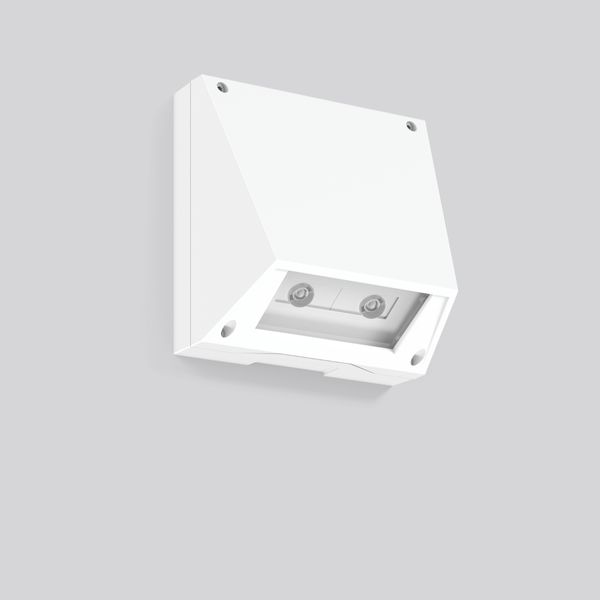

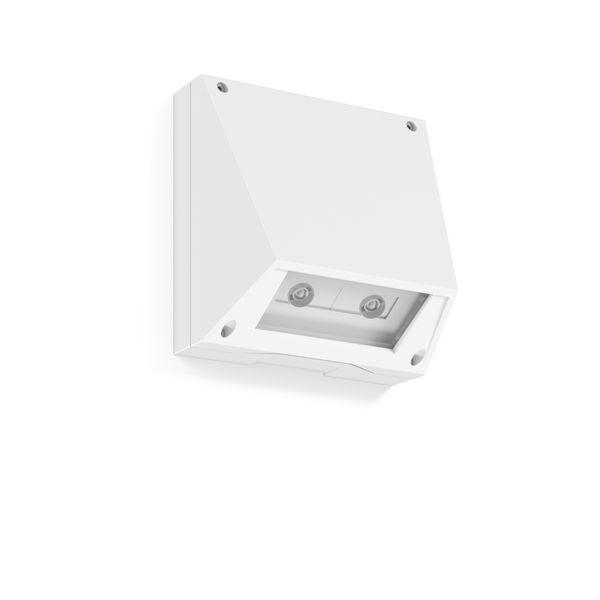

Wall luminaire for escape route illumination. Housing: die-cast aluminium, powder-coated. With plastic lenses for area lighting. Electronic ballast included. Self-contained system with automatic self-test and feedback to the RZB monitoring system MULTIDIGIT.
