CENTRYXX W IP65, 2,9...2,9 W, 210...220 lm, 765, white, on/off Wall lu
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
230,95 €
EAN: 4051859241102
MPN: 672305.002
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CENTRYXX W IP65, 2,9...2,9 W, 210...220 lm, 765, white, on/off Wall lu |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

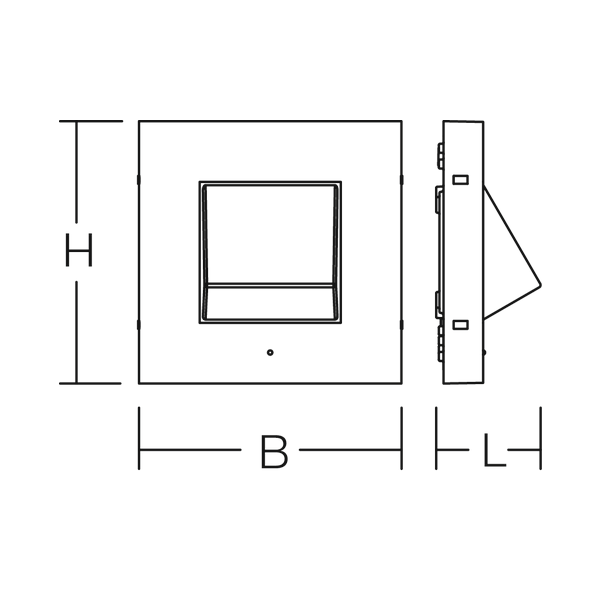

| Width | 198 mm |
| Length | 79 mm |
| Height/depth | 198 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 6500 K |
| Max. system power | 2.9 W |
| Rated luminous flux according to IEC 62722-2-1 | 160 lm |
Packing details
| Packing level 1 | 4051859241102, 4051859241102 |
Other Technical data
| Mounting method | Wall surface mounted |
| Protection class | I |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | Electronic ballast |
| With remote control | No |
| Suitable for labelling type | Other |
| Number of poles | 3 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Nominal current | 12-13 |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 210 lm |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Light distributor | None |
| Max. number of luminaires per miniature circuit breaker C16 | 58 |
| Max. number of luminaires per miniature circuit breaker B16 | 29 |
| Exchangeable control gear | Yes |
| Power factor | 0.56 |
Downloads
Description

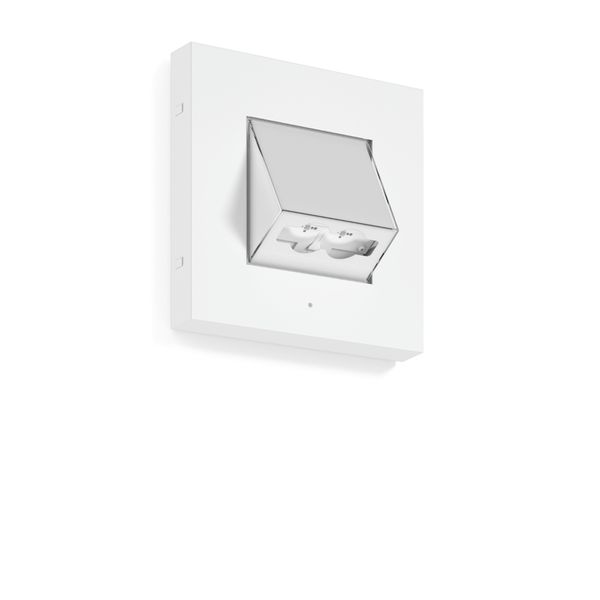

Wall luminaire for escape route illumination. Base: die-cast aluminium, powder-coated Cover: polycarbonate. With plastic lenses for escape route illumination. Vertical swivel. The converter is compatible with DC, making it ideal for central battery systems. Luminaires with limited surface temperature in accordance with EN 60598-2-24 for use in environments in which a deposit of conductive dust on the luminaire can be expected.
