CENTRYXX IP40, 740, white, on/off Ceiling luminaires, L 150 B 150 H 30

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

171,03 €

This price is valid until 24.12.25

EAN: 4068754015615

MPN: 672582.002.F1

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	CENTRYXX IP40, 740, white, on/off Ceiling luminaires, L 150 B 150 H 30
Brand	RZB
Categories	Emergency luminaires
Country of origin	DE
Harmonized System Code	9405 1140 00
Width	150 mm
Length	150 mm
Height/depth	30 mm
Lamp type	LED not exchangeable
Impact strength	IK03
Nominal voltage	220-240 V
Degree of protection (IP)	IP40
Colour temperature	4000 K

Packing details

Packing level 1

4068754015615, 4068754015615

Other Technical data

Mounting method	Ceiling surface mounting
Protection class	II
Function	Escape route lighting
Lamp holder	None
Conductor cross section	2.5 mm²
Connection type	Plug-in connection
Colour housing	White
Voltage type	AC
Power supply system	Peripheral (individual battery)
Type of control gear	Electronic ballast
With remote control	No
Number of poles	2
Number of lighting heads	1
Battery quality	Other
With light source	No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Suitable for number of lamps	1
With remote switch connection	No
Monitoring equipment	Other
Constant light output (CLO)	No
With pictogram	No
Type of wiring	Suitable for through wiring
Luminous flux in standby mode	240 lm
Degree of protection (NEMA)	Other
Nominal operation time	3-8 h
Max. number of luminaires per miniature circuit breaker C16	40
Max. number of luminaires per miniature circuit breaker B16	40
Exchangeable control gear	Yes
Power factor	0.15

Downloads

Product data sheet Others Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

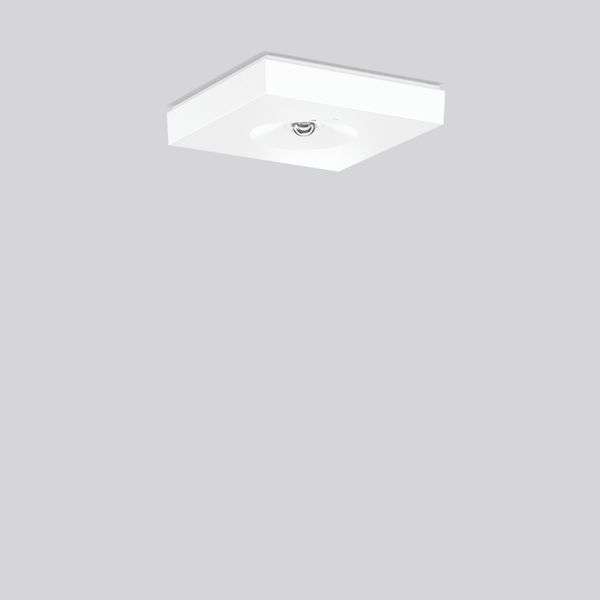

Flat, square surface-mounted luminaire. For escape route illumination. Housing: plastic (polycarbonate). Cover: polycarbonate. Plastic lenses for area lighting and escape route illumination included in scope of delivery. Lenses can be replaced without tools. MULTIDIGIT air wireless monitoring system with automatic self-test and feedback via Bluetooth® via Android / iOS app. No bus line required. Easy configuration and commissioning as well as monitoring via app. Up to 100 self-contained emergency luminaires can be wirelessly networked and monitored. Maximum security thanks to push notification and gateway functionality. The app generates the log book quickly and automatically in PDF format, which can be archived locally or in the cloud.
