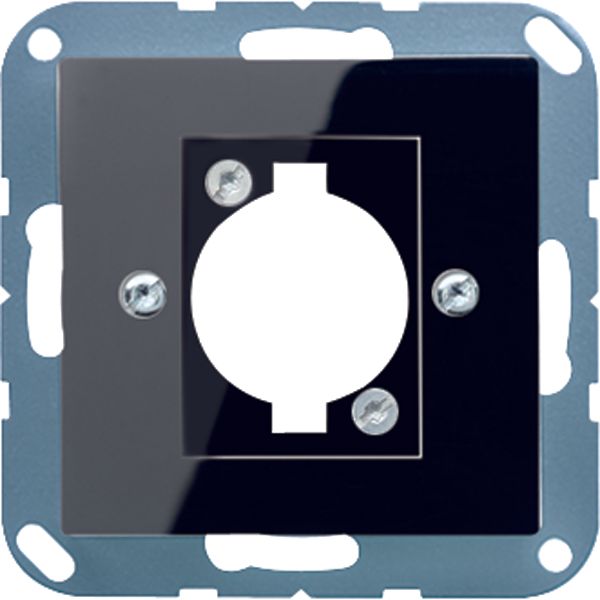

Centre plate for XLR-socket A568BFSW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
14,02 €
EAN: 4011377105096
MPN: A568BFSW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for XLR-socket A568BFSW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Black |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | XLR |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9005 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377105096 |
| Packing level 2 | 4011377105096 |
Downloads
Description
Centre plate for XLR socket, allows mounting and connection of one XLR-type connector in a surface-mounted setup.Designed for integration into modular systems where audio or signal transfer via an XLR standard is required.;Made of thermoplastic, halogen-free, anti-bacterial treatment not present.Black (RAL 9005) with glossy finish.Surface protection:other.Straight outlet direction;no dust cover or hinged lid included.Device dimensions:width 55 mm x height 55 mm x depth 0 mm.Minimum installation box depth required:0 mm. Fastened using screws;support ring included but integrated strain relief absent.Not shielded (housing/buses).Suitable for IP20 environments only—not waterproof/dustproof, intended for indoor use only under light mechanical stress conditions (impact strength unspecified).Cannot accommodate multiple connectors (1 connector supported).No imprint field or lighting feature;no buses/couplings integrated in design setup.
