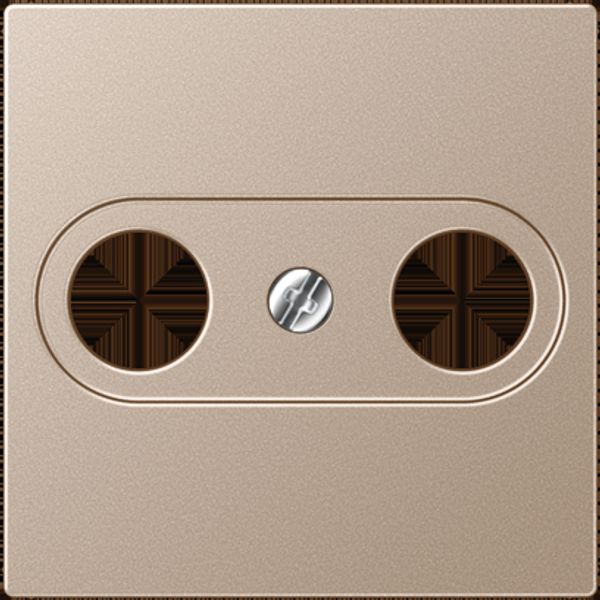

TV-FM-SAT Socket Centre Plate , 1-Gang, For Antenna Outlet Sockets, Duroplastic Lacquered, Champagne, 55 mm x 55 mm
Order only
EAN: 4011377096530
MPN: A561PLTVCH
Box: 1
Price (excl. VAT)
11,16 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for TV-FM-SAT socket A561PLTVCH |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | Other |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377096530 |
| Packing level 2 | 4011377096530 |
Other Technical data
| Colour | Other |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Lacquered |
| With strain relief | No |
| Material quality | Duroplast |
| Imprintable label | Without indication field |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
The Centre plate for TV-FM-SAT socket A561PLTVCH functions as a mounting and interface component in cable management systems, designed to directly cover and align connections for TV, FM, and SAT signal distribution.Supports surface-mounted plaster installations with straight outlet direction. Plastic construction (Duroplast), lacquered finish;matt texture.Dimensions:55 x 55 mm (W x H).Depth:0 mm.Suitable for IP20-rated environments.Halogen-free material.Anti-bacterial treatment not included. Mounting by screw fasteners only;no support ring or strain relief.Transparent properties absent;without hinged lid or dust cover.Not shielded—neither buses nor housing—and lacks compatibility with luster terminals or lighting setups.Accepts one connector;imprinting unavailable (no designation field provided).
