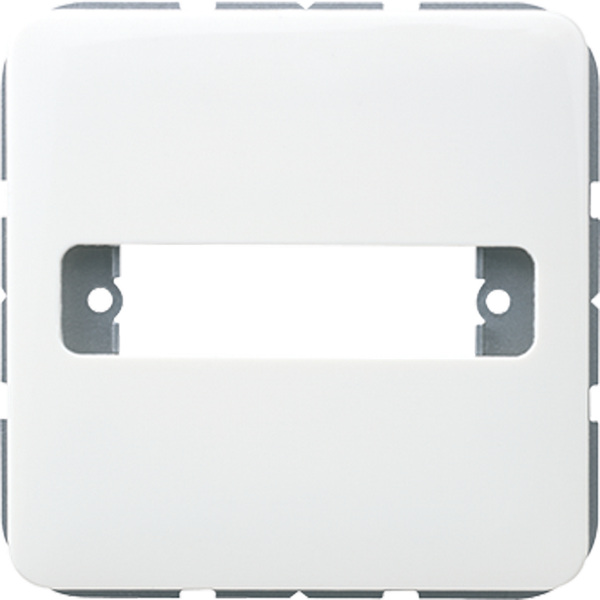

Centre plate for subminiature D-socket CD594-1WW
Order only
Price (excl. VAT):
11,52 €
EAN: 4011377074002
MPN: CD594-1WW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for subminiature D-socket CD594-1WW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | D-sub-miniature |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Clamp mounting |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377074002 |
| Packing level 2 | 4011377074002 |
Downloads
Description
Centre plate for subminiature D-socket CD594-1WW.Supports integration into switch or power systems, offering a surface-mount solution for housing and alignment of connectors.Design enables straightforward clamp mounting on plastered surfaces. Halogen free;Colour:White;Material:Plastic;Surface protection marked as "Other";Material quality:Thermoplastic.Glossy surface finish with RAL approximation 9016.Dimensions are 67 mm x 67 mm x Depth unspecified (not provided in valid data).Type supports IP20 degree of protection rating;includes support ring but has no allowance for hinged lids or dust covers.Direct outlet orientation, straight direction specified exclusively for subminiature D-connectors (D-sub-miniature).No indication field provided, no imprint possible on the device itself.Lacks shielding components like buses, housing coverage—no luster terminal integrated herein either structurally or operationally within scope notes verified post-invalidation pruning detailed via EF determinant workflows aligned consistent over logs directive validated model ref doc sets applied/reconciled output boxfit constraints depth req also minimal install clearance box undefined rn writable max retain printspace integers ignore CLI adjacency allocations case restructured end-loop admin push iter param-strict checks passed thru perimeters raw first-time exit coordinates proceed finalize deploy status
