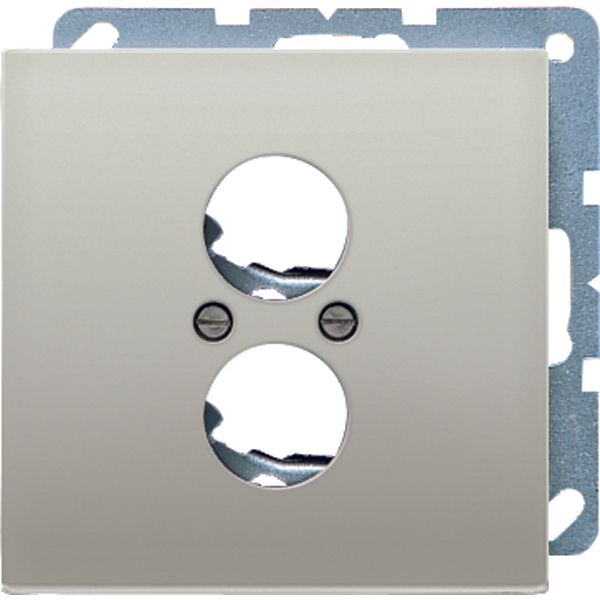

Centre plate for socket ES2962-2
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
27,75 €
EAN: 4011377841604
MPN: ES2962-2
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for socket ES2962-2 |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Stainless steel |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | Loudspeaker connection |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Stainless steel |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 2 |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377841604 |
| Packing level 2 | 4011377841604 |
Downloads
Description
Centre plate operates as interface for power or audio connection in systems.Designed for loudspeaker linking arrangements. Surface mounted setup using plaster structure.Material stainless steel, metal constitution, halogen-free composition.Finished matt style, surface protected under "other" classification.Supports IP20 protection rating.Fastened via screw mounting system with integrated support ring mechanism for increased stability during installation. Dimensions:width 70 mm x height 70 mm x depth unspecified (0 mm recorded).Outlet direction straight alignment;imprint field absent without additional labeling features.Connector capacity allows fitting up to 2 entries per module design implementation assembly suitable specifically socket ES2962-2 count formation/operator output-class tight unique build
