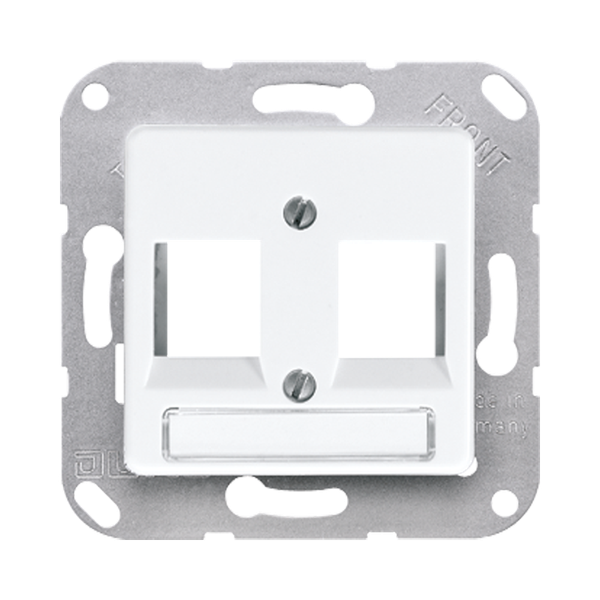

Centre plate for modular jack sockets 169-2NWEWW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
15,40 €
EAN: 4011377989382
MPN: 169-2NWEWW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for modular jack sockets 169-2NWEWW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | Modular Jack |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | With indication plate |
| Suitable for number of connectors | 2 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 50 mm |
| Device height | 50 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377989382 |
| Packing level 2 | 4011377989382 |
| Packing level 3 | 4011377989382 |
Description
Centre plate designed for modular jack sockets.Typically part of structured wiring setups, enabling signal and data transmission connections in power systems. Surface mounted using plaster;fastening method involves screws.White color finish with glossy thermoplastic material construction.Built as halogen-free plastic.Dimensions are 50 mm width by 50 mm height, depth is unspecified (flat).RAL simulation number matches 9016 white tone classification.Supports modular jack utilization with IP20 degree of protection suitability but lacks strain relief features or hinged lids.Straight outlet direction with provided imprintable label including indication plate compatibility.Includes support ring addition for stability in mounting arrangements labeled "Other".Designed to fit up to two connectors without shielded housing or dust cover properties present
