Centre plate for MJ f. 2 sockets AL1969-2NAWEAN
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
31,99 €
EAN: 4011377178120
MPN: AL1969-2NAWEAN
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for MJ f. 2 sockets AL1969-2NAWEAN |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Anthracite |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | Modular Jack |
| Surface protection | Lacquered |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Aluminium |
| Imprintable label | With indication plate |
| Suitable for number of connectors | 2 |
| Material | Metal |
| Type of fastening | Clamp mounting |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |

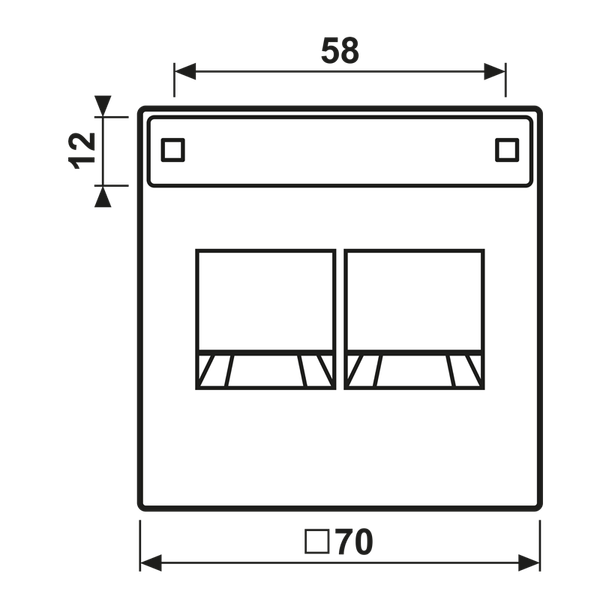

| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377178120 |
| Packing level 2 | 4011377178120 |
Downloads
Description
Centre plate for Modular Jack, facilitates connection of 2 sockets in electrical systems.Designed for surface-mounted setups with straightforward outlet orientation. Anthracite color, halogen-free construction.Made of aluminium-metal combo, lacquered finish, matte look.Clamp mounting type.Dimensions:width 70 mm x height 70 mm x depth (0 mm specified).IP20 suitability rating.Includes support ring;imprintable label option provided with indication plate present.Modular design utilization identified as straight outlet direction style suitable specifically for two connections total via the modular jack system itself ions marked above matching referenced product data banks device logs end matches placement all
