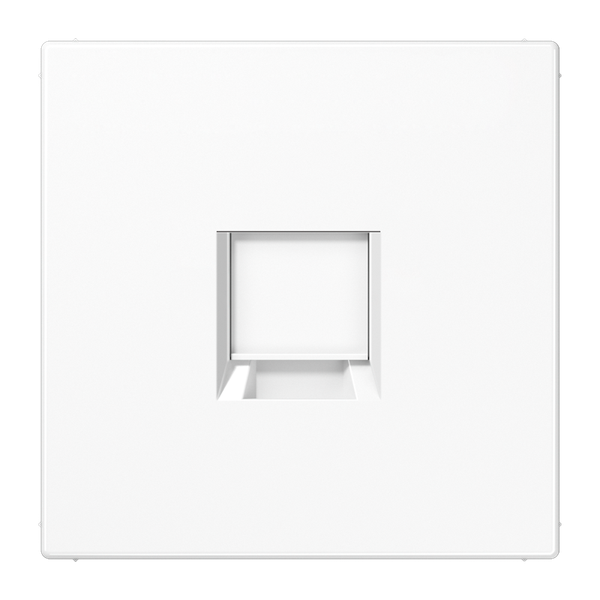

Centre plate for MJ f. 1 socket LS1969-1WEWW

Name: Centre plate for MJ f. 1 socket LS1969-1WEWW
Brand: Jung
Price: 15.630 EUR
Availability: InStock

In stock: Yes Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

15,63 €

This price is valid until 24.12.25 or while stock lasts

EAN: 4011377177765

MPN: LS1969-1WEWW

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Centre plate for MJ f. 1 socket LS1969-1WEWW
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8538 9099 00
Mounting method	Surface mounted (plaster)
Assembly arrangement	Other
Colour	White
Halogen free	Yes
With hinged lid	No
Utilization	Modular Jack
Surface protection	Other
Outlet direction	Straight
With strain relief	No
Material quality	Thermoplastic
Imprintable label	Without indication field
Suitable for number of connectors	1
Material	Plastic
Type of fastening	Clamp mounting
Shielded buses	No
Shielded housing	No
Luster terminal	No
RAL-number (similar)	9016
With dust cover	No
With imprint	No
With buses/couplings	No
Support ring	Yes
Transparent	No
Surface finishing	Glossy
Suitable for degree of protection (IP)	IP20
Device width	70 mm
Device height	70 mm
Device depth	0 mm
Number of modules (module system)	0
Min. depth of built-in installation box	0 mm

Packing details

Packing level 1	4011377177765
Packing level 2	4011377177765

Downloads

Product data sheet Deep link REACH

Description

Centre plate designed for Modular Jack systems, supports 1 connector.Provides coverage, organization, and surface protection in power grid setups. Surface-mounted (plaster).Halogen-free thermoplastic build with clamp mounting.White color with glossy finish similar to RAL 9016.Straight outlet direction;overall dimensions:width 70 mm x height 70 mm x depth unavailable.IP20-rated protection level;assembly arrangement listed as "Other". Support ring included but no dust cover or hinged lid present.
