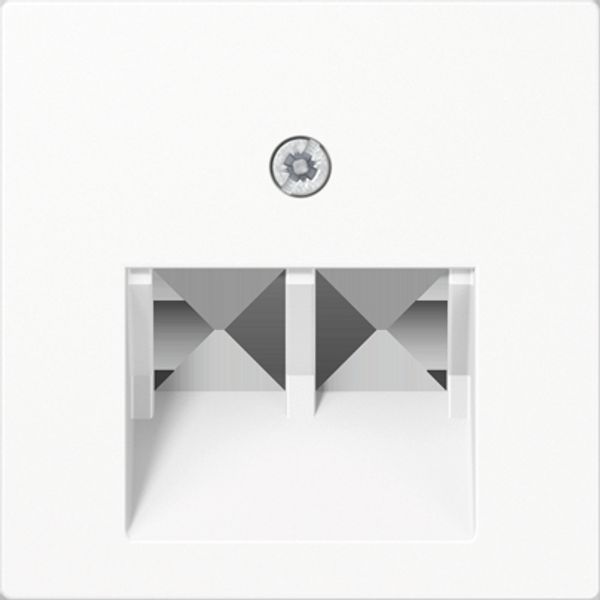

Modular Jack Socket Centre Plate AS/A, 2 x 8-Pole, For IAE/UAE Sockets, White, 55 mm x 55 mm, Thermoplastic
In vendor's stock
EAN: 4011377019232
MPN: A569-2BFPLUAWW
Package: 1
Box: 10
Pallet: 6400
Price (excl. VAT)
3,28 €
per unit
MOQ: 1
EDT to our warehouse: 2-4 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for modular jack socket A569-2BFPLUAWW |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | UAE/IAE (ISDN) |
| Outlet direction | Straight |
| Suitable for number of connectors | 2 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377019232 |
| Packing level 2 | 4011377019232 |
| Packing level 3 | 4011377019232 |
| Packing level 4 | 4011377019232 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Other |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Centre plate for modular jack socket.Used to interface junction boxes with IAE/UAE utilization in power systems, specifically 2 x 8-pole ISDN connections. Surface mounted (plaster).Halogen free.Colour white.Material plastic, material quality thermoplastic.Surface protection other, surface finishing glossy.RAL-number similar to 9016.Transparent false, hinged lid absent, dust cover absent.Outlet direction straight with no imprintable labels or indication field present. Device width and height both measure 55 mm;depth measures at 0 mm nominally since installation box requires minimum built-in depth of zero mm too.Degree of protection rated IP20 only suitable indoors without shielded housing or buses nor strain relief features included around connectors limit coupling strength but maintains structural simplicity—two connector compatibility supported max output range normal. Straight screw-based mounting fastening system holds rigid tension units installed securely assistance required additional modules noted count remains unavailable luster terminal omitted lightly textured exterior final unit layout flush-fitted over general plaster/ridge blends consistent white applying sustainable wiring secondary features missing deliberately gaps kept minimized integrate capacity defects rare exact nuances technical operational database resource product listed bankoflamps end contractor settings work fluorescent casing none embedded φω
