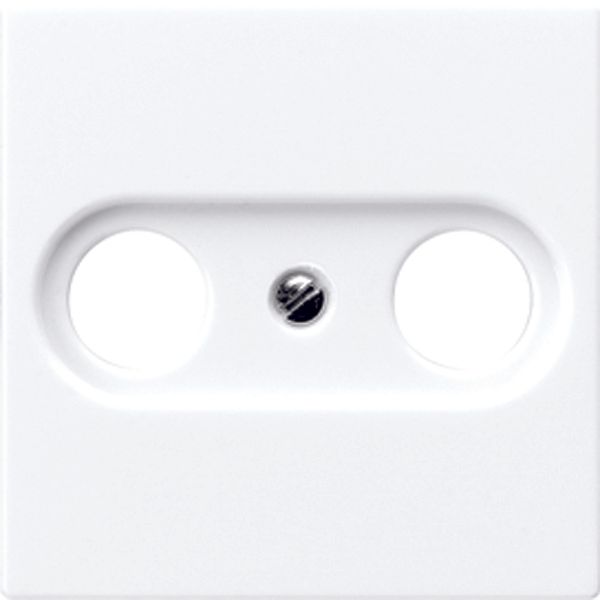

TV-FM-SAT Socket Centre Plate AS/A, 1-Gang, For Antenna Outlet Sockets, White, 55 mm x 55 mm, Duroplastic
Technical Information
| Item condition | New |
| Manufacture name | Centre plate for TV-FM-SAT socket A561PLTVWW |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | Other |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377039056 |
| Packing level 2 | 4011377039056 |
| Packing level 3 | 4011377039056 |
| Packing level 4 | 4011377039056 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Other |
| With strain relief | No |
| Material quality | Duroplast |
| Imprintable label | Without indication field |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Centre plate for TV-FM-SAT socket A561PLTVWW.Used in surface-mounted power systems to manage antenna outlet connections.Facilitates straightforward, straight signal routing. Halogen-free construction ensures compliance with safety standards.White color (RAL 9016), glossy surface finishing – matches aesthetic needs in plaster-mounted setups.Made from duroplast plastic material, offers durability;no anti-bacterial treatment listed.Surface protection marked as "other." Device width and height both measure 55 mm each;depth is non-existent with min box installation depth also at 0 mm.Mounts using screws.IP20 rated – not suitable for dust-heavy environments or high-moisture exposure setups.Incorporates one connector capability without any strain relief structure nor shielding on housing or buses—clean entry/exit point setup only for the single module system specified without imprint or indicator marking options included
