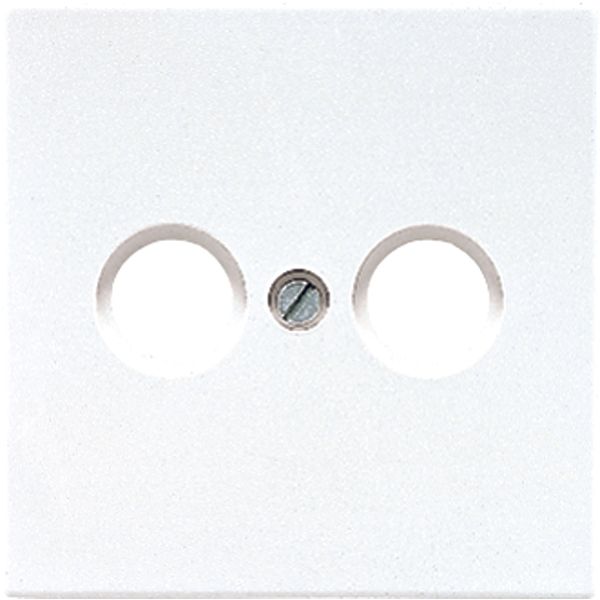

TV-FM Socket Centre Plate LS, 1-Gang, For Antenna Outlet Sockets, White, 70 mm x 70 mm, Thermoplastic
Order only
EAN: 4011377136908
MPN: LS990TVWW
Package: 1
Pallet: 5600
Price (excl. VAT)
4,37 €
per unit
MOQ: 1
EDT to our warehouse: 2-4 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Centre plate f. TV/FM socket LS990TVWW |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | Other |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377136908, 4011377136908 |
| Packing level 2 | 4011377136908 |
| Packing level 3 | 4011377136908 |
| Packing level 4 | 4011377136908 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Other |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Centre plate for TV/FM socket LS990TVWW.Designed to act as a surface-mounted interface within electrical systems for signal transmission in home installations. Dimensions:70 mm x 70 mm.Material:Thermoplastic (Plastic).Surface finishing:Glossy white;RAL similar to 9016.Mounting method is surface mounted, plaster application.Secured via mounting with screws only, no support ring or strain relief present.No dust cover or hinged lid integrated into the assembly design.Transparent option not available, outlet orientation straightforward with no additional directional variability.Suitable for IP20 protection class setups only.Utilizing type categorized under "Other".
