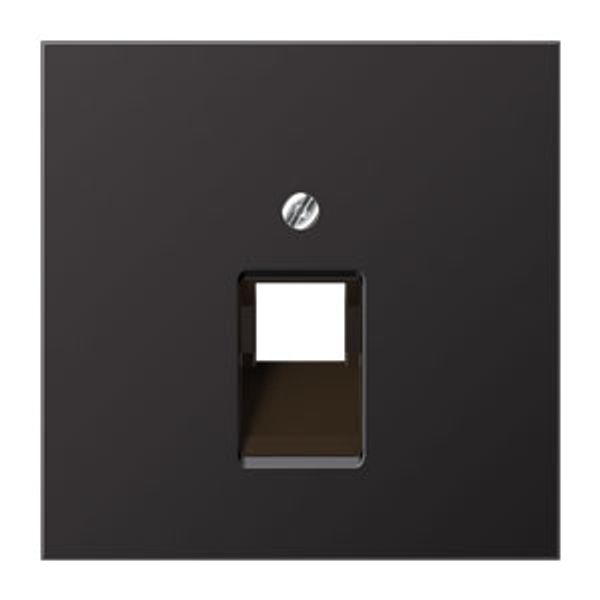

IAE/UAE Socket Centre Plate LS, 1 x 8-Pole, For IAE/UAE Sockets, Aluminium Lacquered, Dark, 70 mm
Order only
EAN: 4011377140028
MPN: AL2969-1UAD
Box: 1
Price (excl. VAT)
14,93 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Centre plate AL2969-1UAD |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | UAE/IAE (ISDN) |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377140028 |
| Packing level 2 | 4011377140028 |
Other Technical data
| Colour | Aluminium |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Lacquered |
| With strain relief | No |
| Material quality | Aluminium |
| Imprintable label | Without indication field |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Centre plate AL2969-1UAD.Used in socket setups for UAE/IAE (ISDN) applications.Installs surface-mounted into plaster, straight outlet direction. Halogen free design, aluminum color and quality with lacquered metal finish.Dimensions:70 mm width x 70 mm height x device depth not applicable.Matt surface finishing.IP20 protection grade;mounting via screw fastening.No additional support ring or dust cover features detected on housing assembly configuration classified as "Other".Single connector capacity without buses/couplings or shielding present.
