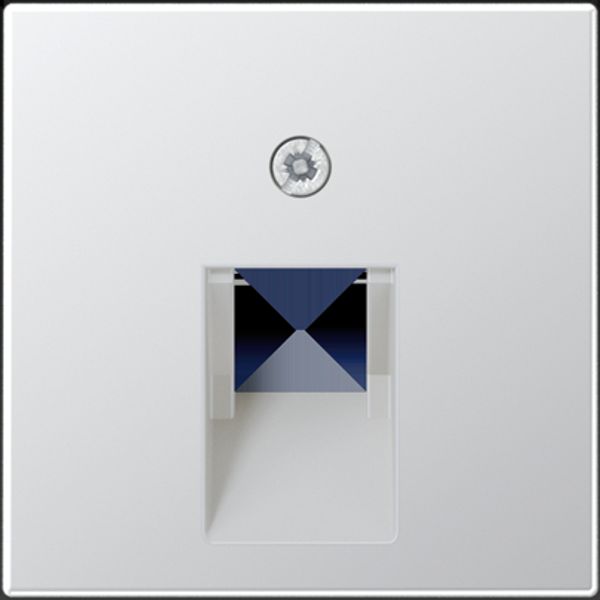

Centre plate A569-1PLUAAL
Order only
Price (excl. VAT):
5,99 €
EAN: 4011377132153
MPN: A569-1PLUAAL
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate A569-1PLUAAL |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Aluminium |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | UAE/IAE (ISDN) |
| Surface protection | Lacquered |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Duroplast |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377132153 |
| Packing level 2 | 4011377132153 |
Downloads
Description
Centre plate A569-1PLUAAL.For UAE/IAE (ISDN) communication systems.Provides a functional interface for structured cabling setups, used in surface-mounted installations, primarily residential or commercial interiors. Surface mounted (plaster).Colour:Aluminium.Plastic material, quality:Duroplast.Lacquered surface protection with a matt finish.Not halogen-free.No antibacterial treatment present. Device dimensions:55 x 55 x 0 mm depth.Transparent:False.Hinged lid absent;no dust cover included, no strain relief functionality provided, not shielded externally or internally (buses/housing).Straight outlet direction;mounting by screws only — support ring not needed. Suitable for IP20 environments (indoor protected from fingers and solid objects >12mm).Min box installation depth required 0 mm flush space available (only external surface mount w/o recess possible).Anti-impact strength unspecified — " ".Accepts one connector;designed without modular systems, imprintable labels or visibility fields ( --restrictions on marking options). Bus coupling absence confirmed alongside luster terminal integration & lighting features omitted ( minimal electrical complexity assured).
