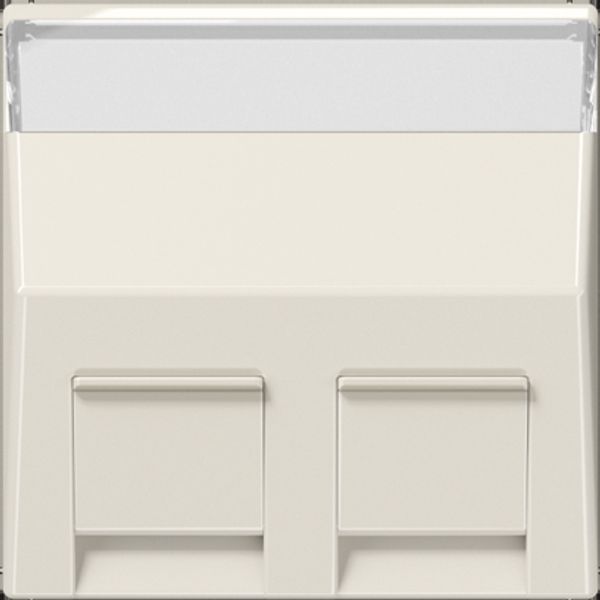

Centre plate A569-30BFPL
Order only
Price (excl. VAT):
18,60 €
EAN: 4011377119611
MPN: A569-30BFPL
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre plate A569-30BFPL |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Central cover plate |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | Other |
| Surface protection | Other |
| Outlet direction | Inclined |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | With indication plate |
| Suitable for number of connectors | 2 |
| Material | Plastic |
| Type of fastening | Clamp mounting |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 1013 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377119611 |
| Packing level 2 | 4011377119611 |
Downloads
Description
Centre plate A569-30BFPL handles outlet direction for inclined socket systems.Fits central cover configurations in surface-mount setups. Device size 55x55 mm, depth irrelevant.Material plastic, thermoplastic quality.Assembly surface mount on plaster;glossy finish close to RAL 1013.IP degree protection is IP20, clamp mounting fastening type only.Includes indication plate label feature for imprintable identification setups, no hinge lid or dust prevention included.
