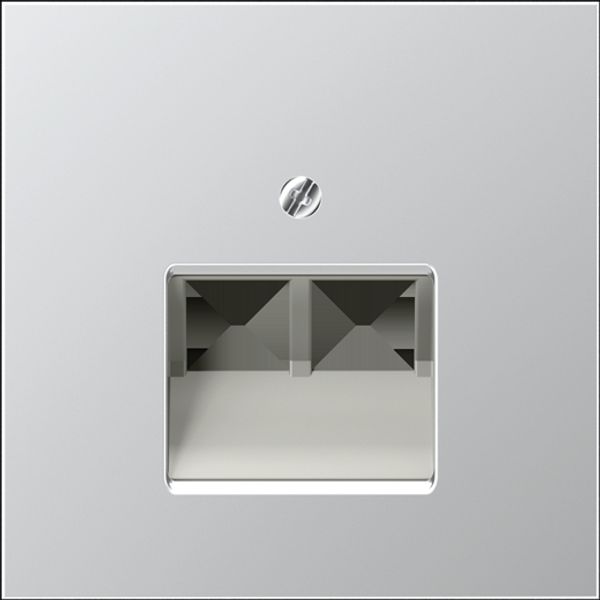

IAE/UAE Socket Centre Plate LS, 2 x 8-Pole, For IAE/UAE Sockets, Aluminium, 70 mm x 70 mm
Order only
EAN: 4011377189157
MPN: AL2969-2UA
Box: 1
Price (excl. VAT)
14,82 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Centre Plate IAE UAE 2×8Pole Aluminium |
| Brand | Jung |
| Categories |
Ethernet Wall Plates
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Utilization | UAE/IAE (ISDN) |
| Outlet direction | Straight |
| Suitable for number of connectors | 2 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377189157 |
| Packing level 2 | 4011377189157 |
Other Technical data
| Colour | Aluminium |
| Halogen free | Yes |
| With hinged lid | No |
| Surface protection | Other |
| With strain relief | No |
| Material quality | Aluminium |
| Imprintable label | Without indication field |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Centre pl.f.2-gang mod.jack sockets AL2969-2UA, designed for ISDN UAE/IAE systems.Provides connectivity for up to two connectors in straight outlet direction. Surface mounted (plaster).Halogen free metal construction, aluminum color with matt surface finishing and unspecified "other" surface protection category.Device dimensions 70 mm width x 70 mm height, depth is specified as none;fits a flat profile configuration.Fastened via screws for secure mounting without support ring;no hinged lid or dust cover present on casing design.Suitable for degree of protection IP20 compliance against solid particle intrusion;not transparent material assembly structure used throughout product fitout construction
