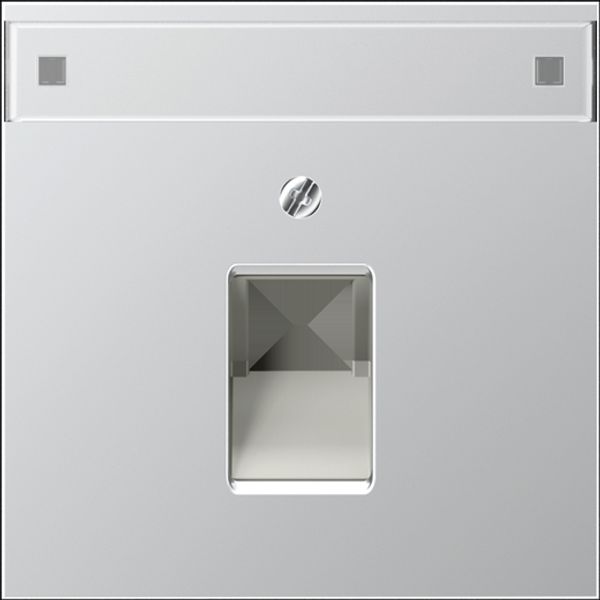

Centre pl.f.1-gang mod. jack sockets AL2969-1NAUA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
17,29 €
EAN: 4011377189058
MPN: AL2969-1NAUA
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Centre pl.f.1-gang mod. jack sockets AL2969-1NAUA |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Aluminium |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | UAE/IAE (ISDN) |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Aluminium |
| Imprintable label | With indication plate |
| Suitable for number of connectors | 1 |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377189058 |
| Packing level 2 | 4011377189058 |
Downloads
Description
Single jack socket for integration into power or switch networking systems, used primarily for UAE/IAE (ISDN) applications.Designed for surface mounting on plaster with screw fastening. Halogen-free construction.Aluminium material and quality;surface is Matt with Other protection finish.Not transparent.Device dimensions:Width 70 mm, Height 70 mm, Depth 0 mm.Straight outlet direction.Suitable for IP20 degree of protection standards;utilized without buses/couplings and strain relief features.Comes with an indication plate label feature but without imprinting functionality or shielded housing/buses capability.
