Central switching point package, preconfigured
Order only
Price (excl. VAT):
316,31 €
EAN: 9010238123489
MPN: 300651
Package: 1
Box: 30
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Central switching point package, preconfigured |
| Brand | EATON |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | CZ |
| Harmonized System Code | 8536 5011 00 |
| Bus system KNX | No |
| With bus connection | Yes |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | Yes |
Packing details
| Packing level 1 | 9010238123489 |
| Packing level 2 | 9010238124370 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Rated current | 10 A |
| Output power | 2300 W |
| Rated operating voltage | 196-253 V |
| Bus system radio frequent | Yes |
| Bus system Powernet | No |
| Max. switching power | 2300 W |
| Max. number of switching contacts | 1 |
| Number of digital inputs | 0 |
| Width in number of modular spacings | 3 |
| Max. switching current | 10 A |
| Other bus systems | xComfort |
| Suitable for C-load | Yes |
| Different phases connectable | No |
| Local operation/hand operation | No |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| Modular expandability | No |
| Bus module detachable | No |
| Min. depth of built-in installation box | 18 mm |
| Max. switching power LED | 0 W |
Description

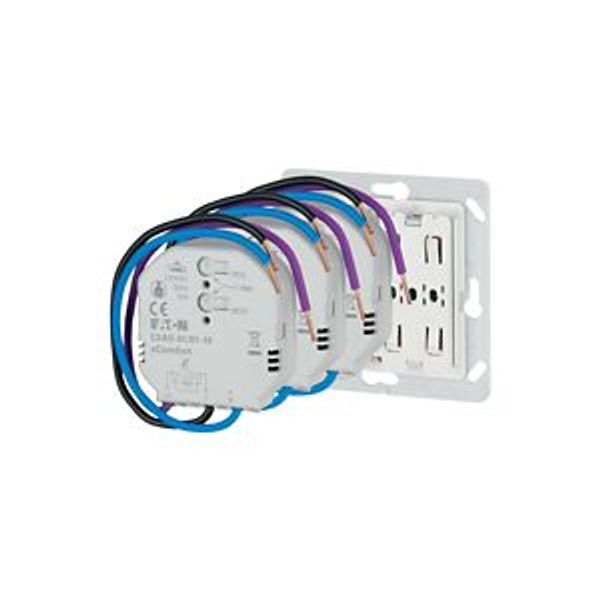

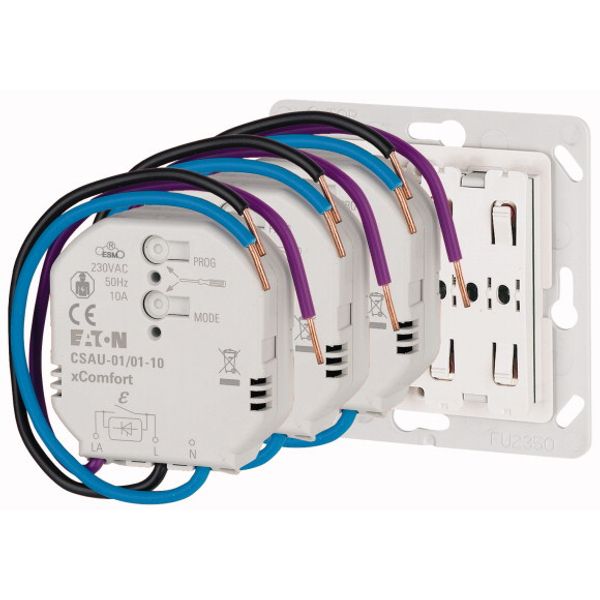

Pre-programmed package: 3 x Switching Actuator 10A, 1 x 4-fold push-button 55 mm + Base Plate, 2 x Adhesive tape for push-button
