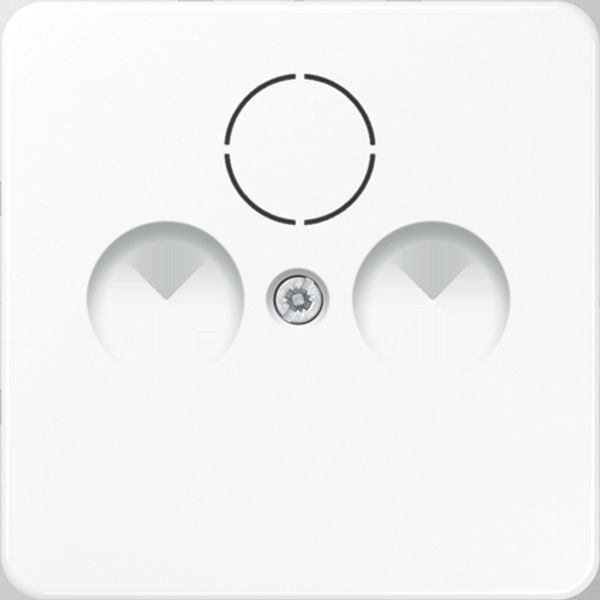

Center plate for TV-FM-SAT sockets CD561SATWW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2,13 €
EAN: 4011377470606
MPN: CD561SATWW
Box: 1
Pallet: 6400
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Center plate for TV-FM-SAT sockets CD561SATWW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | SAT |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377470606 |
| Packing level 2 | 4011377470606 |
| Packing level 3 | 4011377470606 |
| Packing level 4 | 4011377470606 |
Downloads
Description
Center plate for TV-FM-SAT signal outlets.Enables straightforward signal routing in power systems;integrates as part of a mounted socket setup. Surface-mounted (plaster);material plastic, thermoplastic quality white finish glossy RAL 9016.Straight outlet direction, no hinged lid or dust cover.Mounting with screws;non-transparent, halogen-free design IP20 rating suitable for indoor use only.Physical dimensions:width 67 mm, height 67 mm, depth unspecified (0 mm).Utilization SAT-compatible single connector fastening system without shielded housing or buses/couplings defined.Designed without lighting or strain relief components;imprintable label marked absent and compatible modules recorded as zero.No support ring functionality exists or luster terminal attributes present here either.Signal device offering direct installation surfaces and streamlined attachment suitability per standardized depths minimum set at zero install depth clearance maintained through required mounting protocols enforced consistently for ensured post-install efficiency delivery across user environments documented user specification हैं।
