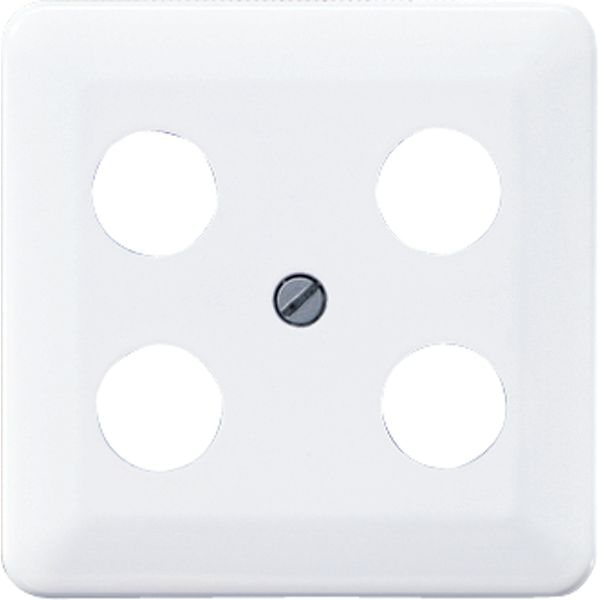

Center plate for SAT-TV CD561-4SAT1WW
Order only
Price (excl. VAT):
6,31 €
EAN: 4011377839106
MPN: CD561-4SAT1WW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Center plate for SAT-TV CD561-4SAT1WW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | White |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | SAT |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 4 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 9016 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377839106 |
| Packing level 2 | 4011377839106 |
Downloads
Description
Center plate for SAT-TV CD561-4SAT1WW used for integrating SAT outlets into power systems.Enables connection of up to 4 connectors in a surface-mounted setup. Surface mount configuration (plaster).Material:thermoplastic plastic, halogen-free.White color with glossy surface finishing, RAL 9016 approximate match.Impact strength undefined.Assembly arranged as "other". Straight outlet direction, mounting secured via screws.Not transparent;does not include dust cover or hinged lid features.Device dimensions:width 67 mm, height 67 mm, depth at installation box set to minimum depth of 0 mm.Degree of protection listed as IP20 without strain relief or shielded housing/buses functionalities available—exclusion applies to lighting and bus couplings support ring absence noted explicitly within the system notes parameters
