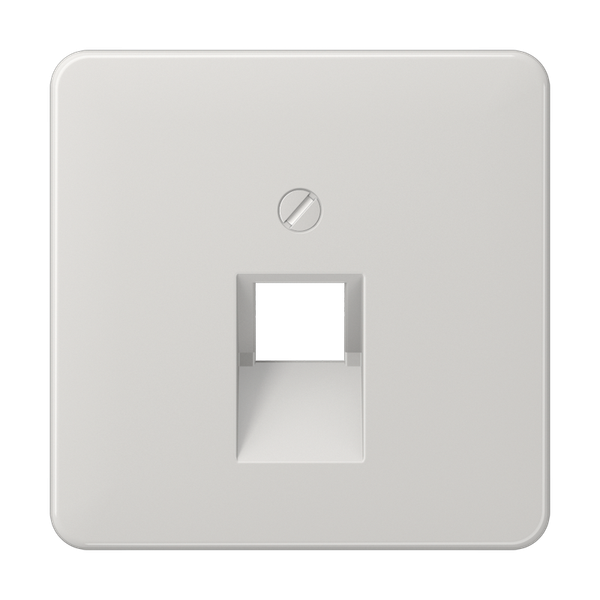

Center pl.f.1-gang mod. jack sockets CD569-1UALG
Order only
Price (excl. VAT):
10,12 €
EAN: 4011377681903
MPN: CD569-1UALG
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Center pl.f.1-gang mod. jack sockets CD569-1UALG |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Grey |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | UAE/IAE (ISDN) |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 7035 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377681903 |
| Packing level 2 | 4011377681903 |
Downloads
Description
Used in switch or power systems as a modular-mounted jack socket for connections, suited for UAE/IAE (ISDN) applications.Installs surface-level on plaster walls.Durable thermoplastic housing in grey (similar RAL 7035).Glossy finish with no additional surface protection applied.Straight outlet direction via mounting screws, ensuring flush alignment. Dimensions:67mm x 67mm faceplate;depth not specified but noted for shallow builds.IP20-rated device for non-waterproof environments.Single connector integration capacity without strain relief or shielding features included.Halogen-free material construction ensures safety compliance under specific standards while avoiding hazardous emissions during high-heat scenarios.
