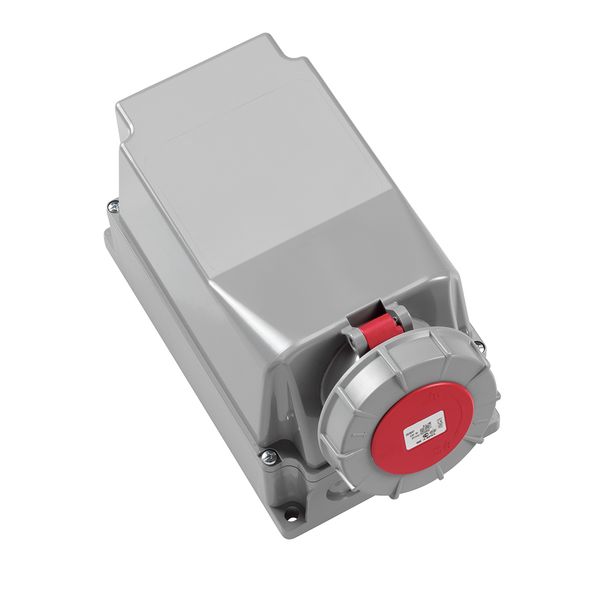

CEE wall socket, IP67, 63A, 5-pole, 400V, 6h, red
Order only
Price (excl. VAT):
37,18 €
EAN: 4011721113562
MPN: D53S37
Package: 1
Box: 2
Pallet: 50
Estimate delivery time at our warehouse (approx.):
3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CEE wall socket, IP67, 63A, 5-pole, 400V, 6h, red |
| Brand | ABL |
| Categories |
CEE Sockets
|
| Country of origin* | AT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| IEC-amperage | 63 A |
| Connection system | Screwed terminal |
| Degree of protection (IP) | IP67 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Packing details
| Packing level 1 | 4011721113562 |
| Packing level 2 | 4011721113562 |
| Packing level 3 | 4011721113562 |
Other Technical data
| Model | Surface mounted (plaster) |
| RAL-number | 3000 |
| Number of poles | 5 |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Amperage according to UL/CSA (for UL-version) | 0 A |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
Description
CEE wall socket, in acc. with VDE 0623, EN 60309 part 1/2, IEC 60309, IP67 waterproof protection rating, Rated current 63A, 5-pole, rated voltage 400V AC, 6h, red, HighPower configuration, with pilot contact, screw terminals, cable inlet at the top, bottom or back, housing can be installed 180°, 1 x M40 top, 2 x 40 dia bottom, 15° angle
