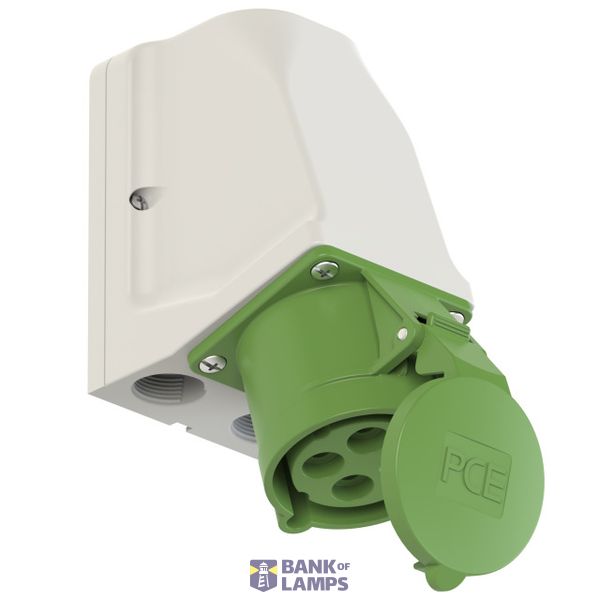

CEE-wall mounted socket wiring through 32A 4p 2h IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted socket wiring through 32A 4p 2h IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	32 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	50-500 V (>300-500 Hz) green

Packing details

Packing level 1

9003399507137

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Number of poles	4
Material	Plastic
Type of fastening	Inner lying mounting
Surface treatment contacts	Untreated
Clock hour position	2 h
Identification colour	Green

Downloads

Product data sheet

Description

CEE-wall mounted socket wiring through 32A 4p 2h IP44
housing material: PA6
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 2h
rated voltage/frequency: >50V~ / 300-500Hz
contacts: brass
connection technology: screw terminals
cable entry: top, 2x bottom, rear
inc. threaded cable grommet
housing for wiring through
IP protection class: IP44
