CEE-wall mounted socket wiring through 16A 5p 1h IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted socket wiring through 16A 5p 1h IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	16 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	Other

Packing details

Packing level 1

9003399368912

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Number of poles	5
Material	Plastic
Surface treatment contacts	Nickel-plated
Clock hour position	1 h
Identification colour	Grey

Downloads

Product data sheet

Description

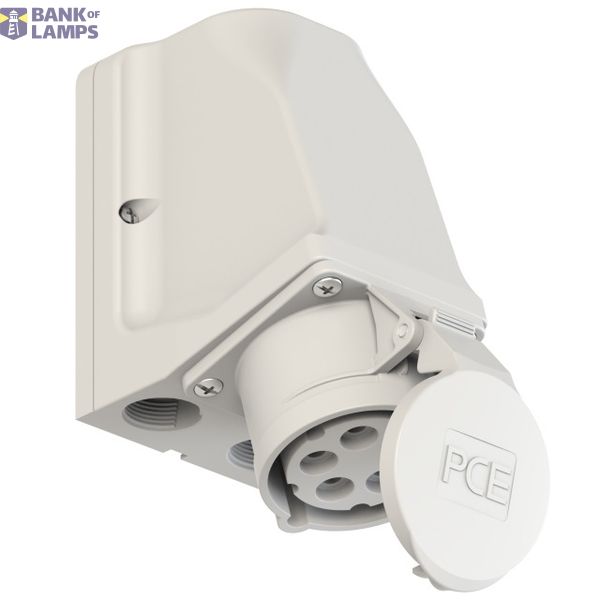

CEE-wall mounted socket wiring through 16A 5p 1h IP44
housing material: PA6
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 1h
rated voltage/frequency: >50V / others
contacts: brass nickel plated
connection technology: screw terminals
cable entry: top, 2x bottom, rear
inc. threaded cable grommet
housing for wiring through
IP protection class: IP44
