CEE-wall mounted socket mit Fenster 32A 3p 4h IP67

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted socket mit Fenster 32A 3p 4h IP67
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399052149

Other Technical data

Colour	Grey
Housing material	Plastic
Other fixtures and/or empty locations	5

Downloads

Product data sheet

Description

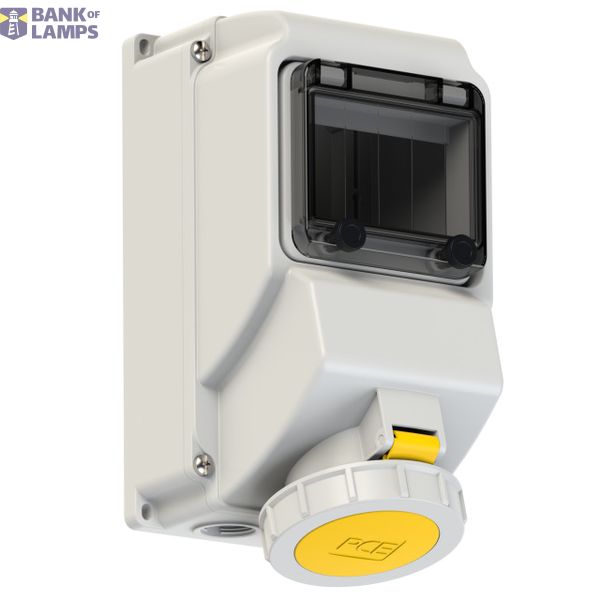

CEE-wall mounted socket with window 32A 3p 4h IP67
housing material: PC/ABS
rated current: 32A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
cable entry: top, bottom, rear
inc. threaded blind cap
with hinged window (5 modules) and DIN rail
IP protection class: IP66/IP67
