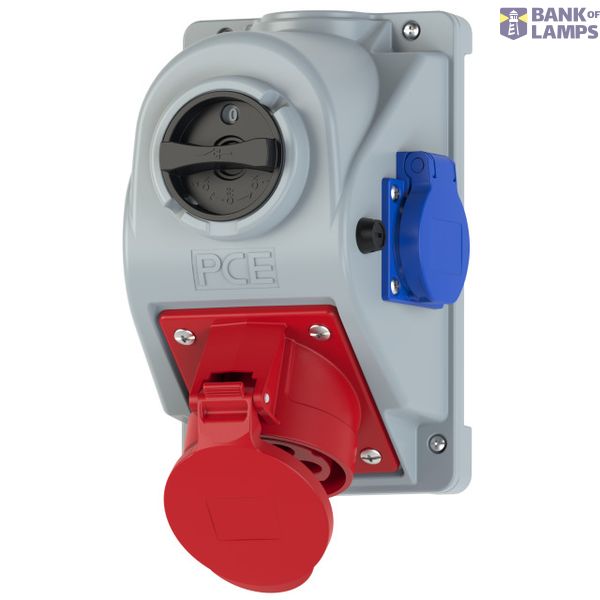

CEE-wall mounted socket COMBO-POL 32A 4p 6h IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted socket COMBO-POL 32A 4p 6h IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001324
Housing material	Plastic
IEC-amperage	32 A
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	400 V (50+60 Hz) red

Packing details

Packing level 1

9003399653735

Other Technical data

Switch	With on/off switch, without locking
Number of poles	4
Clock hour position	6 h
Identification colour	Red

Downloads

Product data sheet

Description

CEE-wall mounted socket COMBO-POL 32A 4p 6h IP44
housing material: PA6
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 6h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
cable entry: top or rear
with ON/OFF (0-I) switch AC22A
with safety socket 16A 250V (Austrian/German system)
IP protection class: IP44
