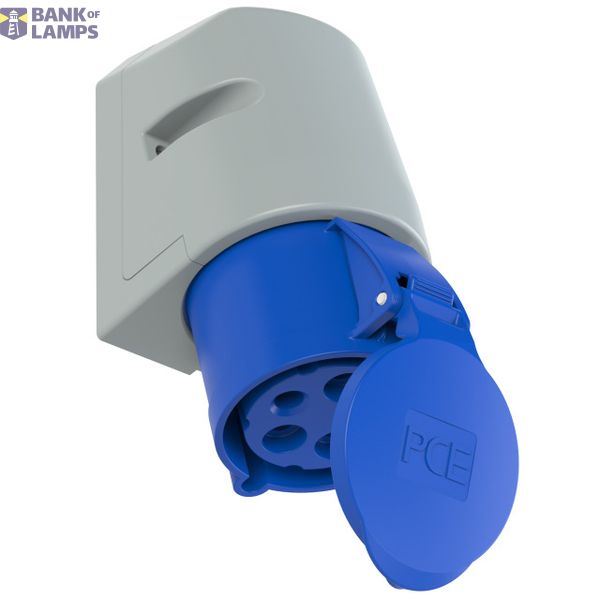

CEE-wall mounted socket 32A 5p 9h IP44 TT

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted socket 32A 5p 9h IP44 TT
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	32 A
Connection system	Screw less terminal
Contact material	CuZn
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	200 - 250 V (50+60 Hz) blue

Packing details

Packing level 1

9003399668203

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Number of poles	5
Material	Plastic
Type of fastening	Inner lying mounting
Surface treatment contacts	Nickel-plated
Clock hour position	9 h
Identification colour	Blue

Downloads

Product data sheet

Description

CEE-wall mounted socket 32A 5p 9h IP44 TT
housing material: PA6
rated current: 32A
number of poles: 5 (3P+N+PE)
clock-position: 9h
rated voltage/frequency: 120/208V~ - 144/250V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screwless terminals (TT)
cable entry: top and rear
inc. threaded cable grommet
IP protection class: IP44
