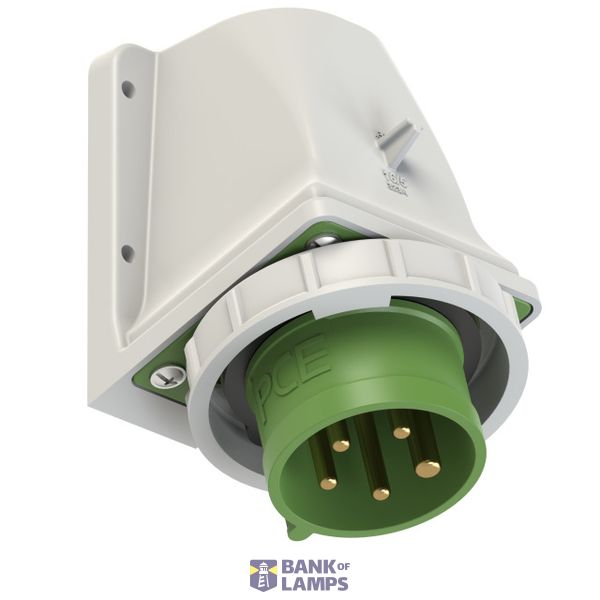

CEE-wall mounted plug 16A 5p 10h IP67

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted plug 16A 5p 10h IP67
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Untreated
IEC-amperage	16 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	50-500 V (100-300 Hz) green

Packing details

Packing level 1

9003399358722

Other Technical data

Construction type	Surface mounted plug
Number of poles	5
Angle of plug	Angled
Phase inverter	No
Clock hour position	10 h
Identification colour	Green

Downloads

Product data sheet

Description

CEE-wall mounted plug 16A 5p 10h IP67
housing material: PA6
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 10h
rated voltage/frequency: >50V~ / 100-300Hz
contacts: brass
connection technology: screw terminals
IP protection class: IP66/IP67
