CEE-wall mounted plug 125A 5p 1h IP67 POWER TWIST

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-wall mounted plug 125A 5p 1h IP67 POWER TWIST
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Nickel-plated
IEC-amperage	125 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	Other

Packing details

Packing level 1

9003399772382

Other Technical data

Construction type	Surface mounted plug
Number of poles	5
Angle of plug	Angled
Clock hour position	1 h
Identification colour	Grey

Downloads

Product data sheet

Description

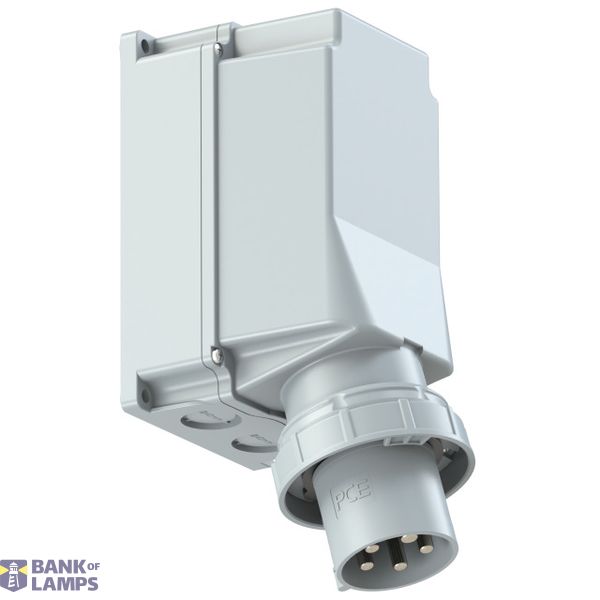

CEE-wall mounted plug 125A 5p 1h IP67 POWER TWIST
housing material: PC/ABS
rated current: 125A
number of poles: 5 (3P+N+PE)
clock-position: 1h
rated voltage/frequency: >50V / others
contacts: brass nickel plated, with pilot pin
connection technology: frame terminals with screws
IP protection class: IP66/IP67
