MD01 image 1

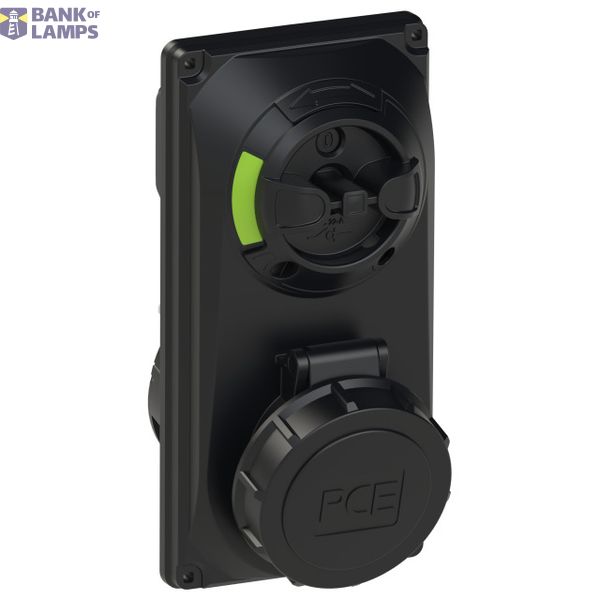

CEE-switched interlocked socket compact 16A 3p 6h IP66/IP67 black

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-switched interlocked socket compact 16A 3p 6h IP66/IP67 black
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001324
Contact material CuZn

Packing details

Packing level 1 9003399489969

Other Technical data

Surface treatment contacts Nickel-plated

Downloads

Description

CEE-switched interlocked socket compact 16A 3p 6h IP66/IP67 black
housing material: PA6 + PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
panel mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
IP protection class: IP66/IP67
