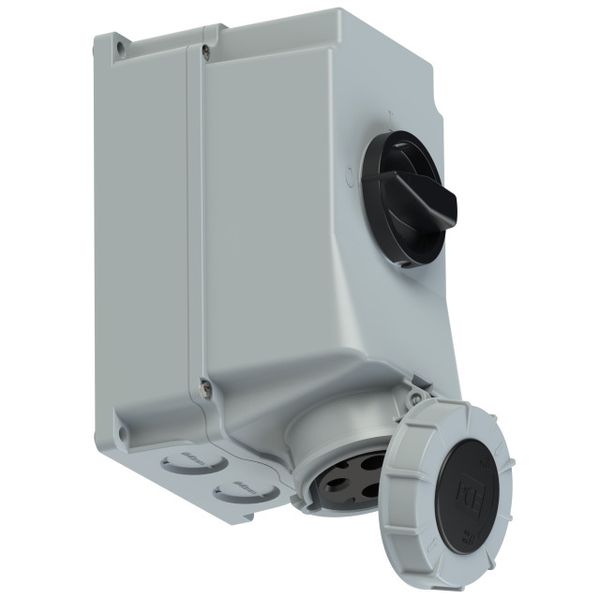

CEE-switched interlocked socket 63A 3p 7h IP66/IP67

Order only

Price (excl. VAT):

317,03 €

This price is valid until 24.12.25

EAN: 9003399922718

MPN: 75332-7

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	CEE-switched interlocked socket 63A 3p 7h IP66/IP67
Brand	PCE
Categories	CEE Sockets
Harmonized System Code	8536 6990 00
Housing material	Plastic
IEC-amperage	63 A
Contact material	CuZn
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	500 V (50+60 Hz) black

Packing details

Packing level 1

9003399922718

Other Technical data

Model	Base unit and cover
Switch	Mechanical locking
Number of poles	3
Surface treatment contacts	Nickel-plated
Clock hour position	7 h
Identification colour	Black

Downloads

Product data sheet

Description

CEE-switched interlocked socket 63A 3p 7h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 3 (2P+PE)
clock-position: 7h
rated voltage/frequency: 480-500V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
