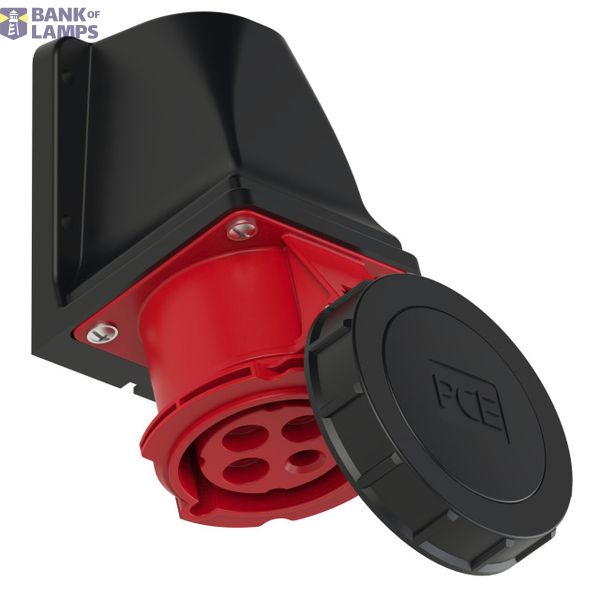

CEE-receptacle wall mount 30A 3P4W 3h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle wall mount 30A 3P4W 3h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399945601

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Material	Plastic
Type of fastening	External mounting
Surface treatment contacts	Nickel-plated
Amperage according to UL/CSA (for UL-version)	30 A
Clock hour position	3 h
Identification colour	Red

Downloads

Product data sheet

Description

CEE-receptacle wall mount 30A 3P4W 3h IP67 UL (PCE430RS3Wv)
housing material: PA6
rated current: 30A
number of poles: 3P4W (4p)
clock position: 3h
rated voltage: 380,440Vac
contacts: brass nickel plated
connection technology: screw terminals
IP protection class: IP67
