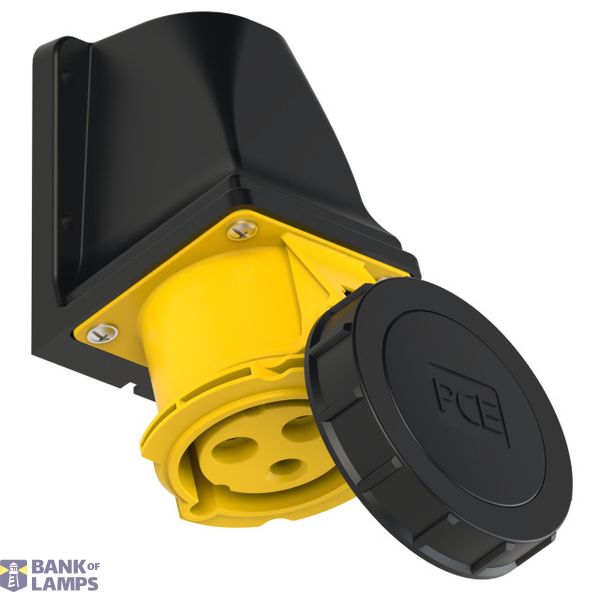

CEE-receptacle wall mount 30A 2P3W 4h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle wall mount 30A 2P3W 4h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	32 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399927010

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Material	Plastic
Type of fastening	External mounting
Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	30 A
Clock hour position	4 h
Identification colour	Yellow

Downloads

Product data sheet

Description

CEE-receptacle wall mount 30A 2P3W 4h IP67 UL (PCE330RS4W)
housing material: PA6
rated current: 32A/30A
number of poles: 2P3W (3p)
clock position: 4h
rated voltage: 120Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP67
