CEE-receptacle wall mount 20A 4P5W 5h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle wall mount 20A 4P5W 5h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399506888

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Material	Plastic
Type of fastening	External mounting
Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	20 A
Clock hour position	5 h
Identification colour	Black

Downloads

Product data sheet

Description

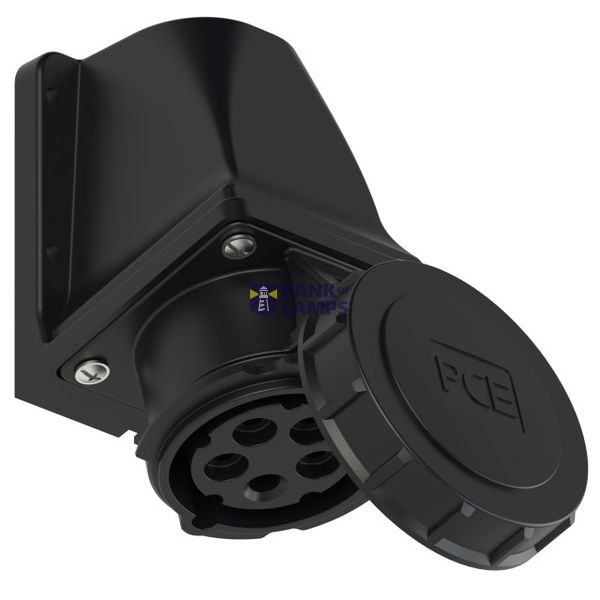

CEE-receptacle wall mount 20A 4P5W 5h IP67 UL (PCE520RS5W)
housing material: PA6
rated current: 20A
number of poles: 4P5W (5p)
clock position: 5h
rated voltage: 347/600Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP67
