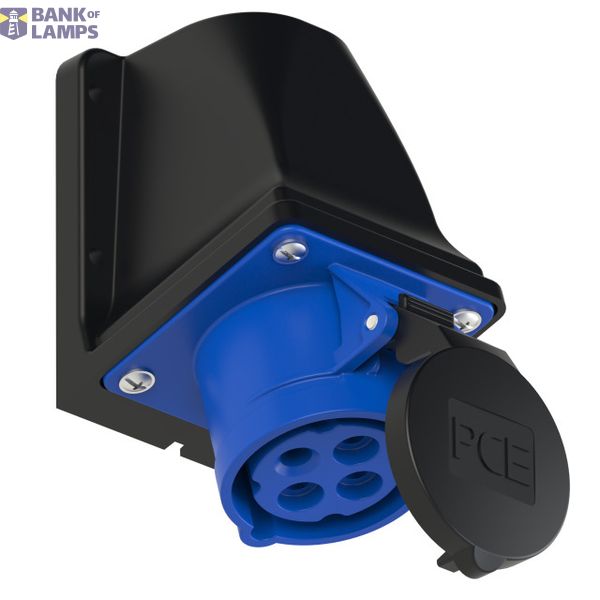

CEE-receptacle wall mount 20A 3P4W 9h IP44 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle wall mount 20A 3P4W 9h IP44 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	16 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399947674

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Material	Plastic
Type of fastening	External mounting
Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	20 A
Clock hour position	9 h
Identification colour	Blue

Downloads

Product data sheet

Description

CEE-receptacle wall mount 20A 3P4W 9h IP44 UL (PCE420RS9S)
housing material: PA6
rated current: 16A/20A
number of poles: 3P4W (4p)
clock position: 9h
rated voltage: 250Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP44
