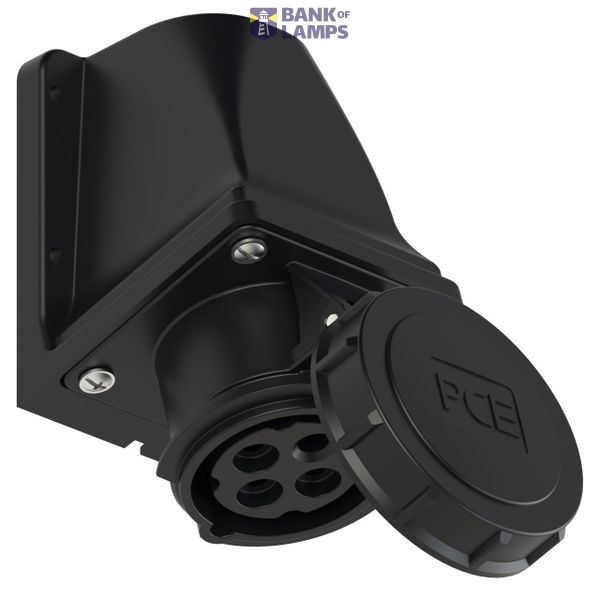

CEE-receptacle wall mount 20A 3P4W 12h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle wall mount 20A 3P4W 12h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001321
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399618888

Other Technical data

Model	Surface mounted (plaster)
Cable entry	Gland nut
Material	Plastic
Type of fastening	External mounting
Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	20 A
Clock hour position	12 h

Downloads

Product data sheet

Description

CEE-receptacle wall mount 20A 3P4W 12h IP67 UL (PCE420RS12W)
housing material: PA6
rated current: 20A
number of poles: 3P4W (4p)
clock position: 12h
rated voltage: 120/250Vac single phase
contacts: brass
connection technology: screw terminals
IP protection class: IP67
