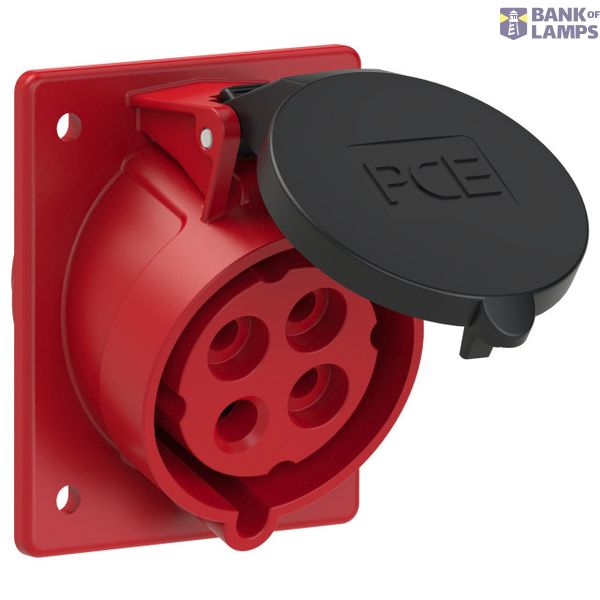

CEE-receptacle flange 80x97 angled 30A 3P4W 7h IP44 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle flange 80x97 angled 30A 3P4W 7h IP44 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	4
Material	Plastic
Connection system	Screwed terminal

Packing details

Packing level 1

9003399438431

Other Technical data

Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	30 A
Angle of plug	Angled
Contact material	CuZn
Degree of protection (IP)	IP44
Clock hour position	7 h
Identification colour	Red
Drill hole distance vertical	73 mm
Drill hole distance horizontal	60 mm
Flange size vertical	97 mm
Flange size horizontal	80 mm

Downloads

Product data sheet

Description

CEE-receptacle flange 80x97 angled 30A 3P4W 7h IP44 UL (PCE430RA7S)
housing material: PA6
rated current: 30A
number of poles: 3P4W (4p)
clock position: 7h
rated voltage: 480Vac
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 80x97mm / 60x73mm
IP protection class: IP44
