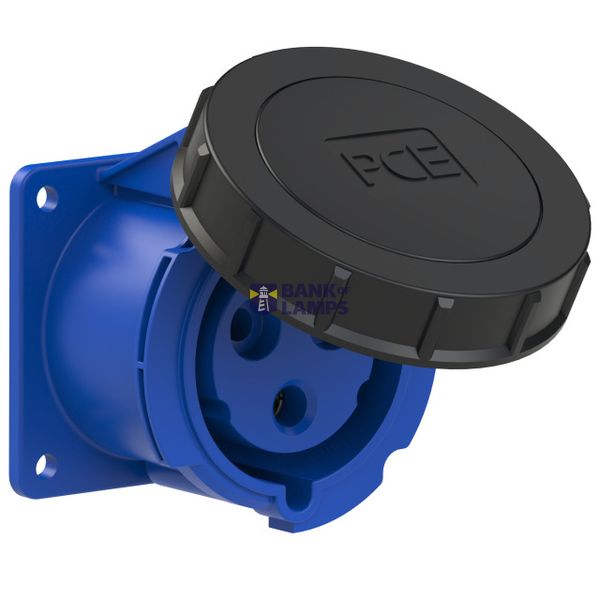

CEE-receptacle flange 75x75 straight 30A 2P3W 6h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-receptacle flange 75x75 straight 30A 2P3W 6h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001317
Number of poles	3
Material	Plastic
IEC-amperage	32 A
Connection system	Screwed terminal

Packing details

Packing level 1

9003399506376

Other Technical data

Surface treatment contacts	Untreated
Amperage according to UL/CSA (for UL-version)	30 A
Angle of plug	Straight
Contact material	CuZn
Degree of protection (IP)	IP67
Clock hour position	6 h
Identification colour	Blue
Drill hole distance vertical	60 mm
Drill hole distance horizontal	60 mm
Flange size vertical	75 mm
Flange size horizontal	75 mm

Downloads

Product data sheet

Description

CEE-receptacle flange 75x75 straight 30A 2P3W 6h IP67 UL (PCE330R6W)
housing material: PA6
rated current: 32A/30A
number of poles: 2P3W (3p)
clock position: 6h
rated voltage: 250Vac
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 75x75mm / 60x60mm
IP protection class: IP67
