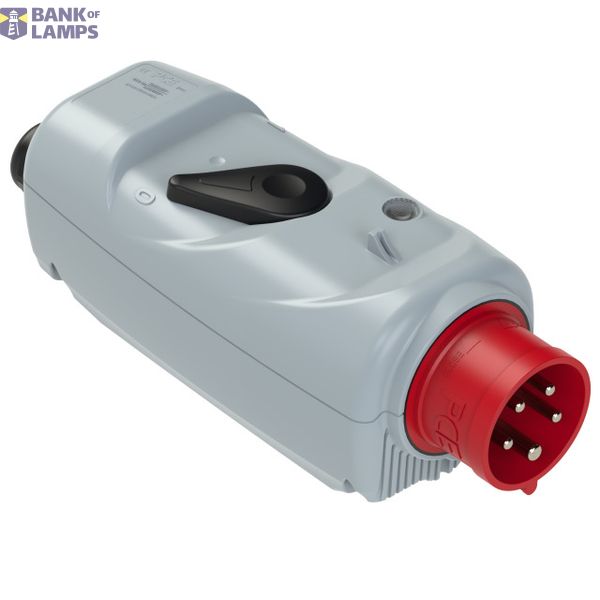

CEE-plug with switch (ON-OFF) +BA 16A 5p 6h IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-plug with switch (ON-OFF) +BA 16A 5p 6h IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000452
Rated voltage	400 V
Rated permanent current Iu	16 A

Packing details

Packing level 1

9003399627019

Other Technical data

Colour housing	Grey
Colour plug	Red
Phase inverter	No
Phase sequence monitoring	No
Type of control element	Rotary toggle

Downloads

Product data sheet

Description

CEE-plug with switch (ON-OFF) +BA 16A 5p 6h IP44
housing material: PC/ABS
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
rotary lever (AC22A 10kA) ON/OFF, with operating display
cable gland: M25
IP protection class: IP44
