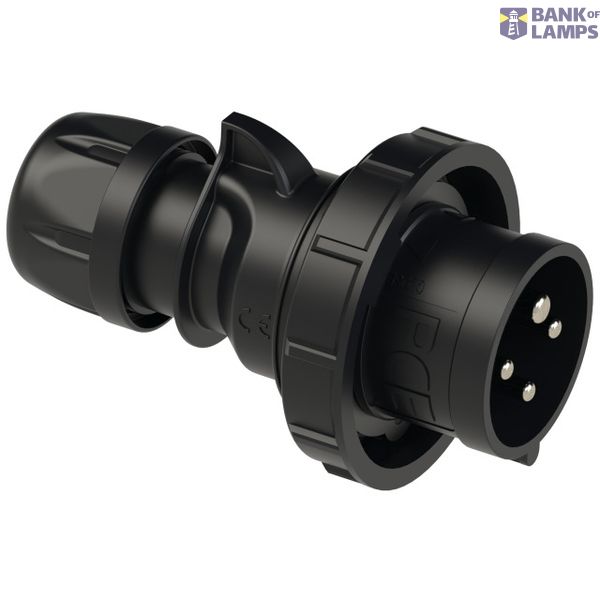

CEE-plug 30A 3P4W 12h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-plug 30A 3P4W 12h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000140
Number of poles	4
Connection system	Screwed terminal
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399873591

Other Technical data

Cable entry	Gland nut
Material	Plastic
Surface treatment contacts	Nickel-plated
Amperage according to UL/CSA (for UL-version)	30 A
Angle of plug	Straight
Contact material	CuZn
Clock hour position	12 h

Downloads

Product data sheet

Description

CEE-plug 30A 3P4W 12h IP67 UL (PCE430P12Wv)
housing material: PA6
rated current: 30A
number of poles: 3P4W (4p)
clock position: 12h
rated voltage: 120/250Vac single phase
contacts: brass nickel plated
connection technology: screw terminals
IP protection class: IP67
