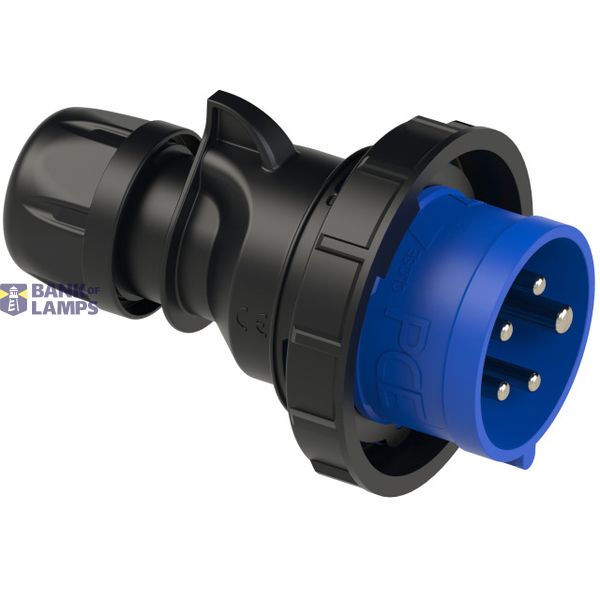

CEE-plug 20A 4P5W 9h IP67 UL

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-plug 20A 4P5W 9h IP67 UL
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000140
Number of poles 5
IEC-amperage 16 A
Connection system Screwed terminal
Degree of protection (IP) IP67

Packing details

Packing level 1 9003399458880

Other Technical data

Cable entry Gland nut
Material Plastic
Surface treatment contacts Nickel-plated
Amperage according to UL/CSA (for UL-version) 20 A
Angle of plug Straight
Contact material CuZn
Clock hour position 9 h
Identification colour Blue

Downloads

Description

CEE-plug 20A 4P5W 9h IP67 UL (PCE520P9Wv)
housing material: PA6
rated current: 16A/20A
number of poles: 4P5W (5p)
clock position: 9h
rated voltage: 120/208Vac
contacts: brass nickel plated
connection technology: screw terminals
IP protection class: IP67
